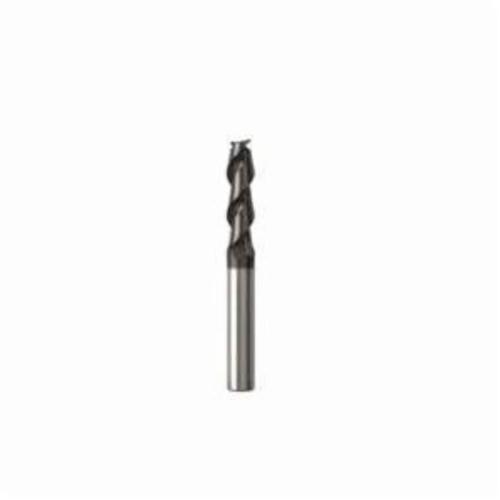

Seco JABRO® Solid2 01725 Solid2 JS512 Center Cutting Single End Universal End Mill, 10 mm Dia Cutter, 0.1 mm Corner Radius, 35 mm Length of Cut, 2 Flutes, 10 mm Dia Shank, 89 mm OAL, NXT/PVD Coated


Description

Seco JABRO® Solid2 End Mill, Center Cutting Single End Universal, Series: Solid2 JS512, 10 mm Diameter Cutter, 0.1 mm Corner Radius, 89 mm Overall Length, 35 mm Length of Cut, 2 Flutes, Right Spiral Flute, 10 mm Shank Diameter, Right Hand Cutting Direction, 46 deg Helix Angle, Cylindrical Shank, ANSI Code: JS512100D3C.0Z2-NXT, ISO Code: JS512100D3C.0Z2-NXT, Solid Carbide, NXT/PVD Coated

Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.

Specifications

ANSI Code JS512100D3C.0Z2-NXT
Corner Radius 0.1 mm
Cutter Diameter 10 mm
Cutting Direction Right Hand
Finish NXT/PVD Coated
Flute Type Right Spiral
Helix Angle 46 deg
ISO Code JS512100D3C.0Z2-NXT
Length of Cut 35 mm
Material Solid Carbide
Number of Flutes 2
Overall Length 89 mm
Series Solid2 JS512
Shank Diameter 10 mm
Shank Type Cylindrical
Type Center Cutting Single End Universal

Country of Origin: Netherlands

Application:
General Machining, Radial, Ramping, Plunging and Drilling
