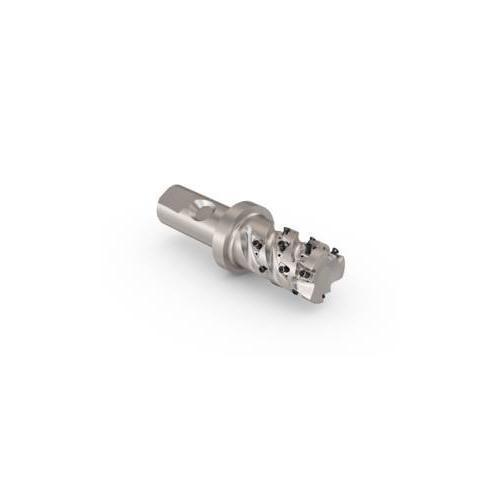

Seco 02926813 R217.94 Indexable Square-Shoulder End Mill, 1.26 in Dia Cutting, Weldon Shank, 1.693 in Max Depth of Cut


Description

Seco, 02926813, Square-Shoulder End Mill, Indexable, Series: R217.94, 1.26 in Diameter Cutting, 4.764 in Overall Length, 1.693 in Maximum Depth of Cut, 18 Inserts, Insert Compatibility: LOEX, 0.984 in Shank Diameter, Weldon Shank, 2.205 in Shank Length

Specifications

Cutting Diameter 1.26 in
Insert Compatibility LOEX
Maximum Depth of Cut 1.693 in
Number of Inserts 18
Overall Length 4.764 in
Series R217.94
Shank Diameter 0.984 in
Shank Length 2.205 in
Shank Type Weldon
Type Indexable

Country of Origin: France

Features

  • Incorporates the latest geometries and grades to achieve high feed rates, large depths of cut, and aggressive metal removal in contouring and profiling operations
