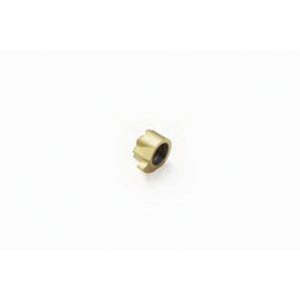

Seco 02410934 Mini-Shaft™ Grooving Insert, ANSI Code: LCEX080400-0115R-FG CP500, Irregular Shape, LCEX Insert, 080400 Insert, Right Hand Cutting, 1.15 mm W Cutting, Manufacturer's Grade: CP500, PVD-TiAlN+TiN Coated


Description

Seco Grooving Insert, Series: Mini-Shaft™, LCEX Insert, 080400 Insert, Irregular, 1.15 mm Cutting Width, 1.7 mm Maximum Depth of Cut, FG Chipbreaker, 7.8 mm Length, Manufacturer's Grade: CP500, ANSI Code: LCEX080400-0115R-FG CP500, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated

The Seco Mini-Shaft™ system consists of holders and inserts for internal turning, grooving, precision grooving, profiling, backfacing and threading. It can be used in holes as small as 8 mm (Mini-Shaft™ 08) or 11 mm (Mini-Shaft™ 11). Seco Mini-Shaft™ also features a new type of joint, with a double serration, making the connection both stable and secure. It also gives very good repeatability (+/-0.02 mm).

Specifications

ANSI Code LCEX080400-0115R-FG CP500
Chipbreaker FG
Cutting Direction Right Hand
Cutting Width 1.15 mm
Finish PVD-TiAlN+TiN Coated
Insert Size 080400
Insert Style LCEX
Length 7.8 mm
Manufacturer's Grade CP500
Material Carbide
Maximum Depth of Cut 1.7 mm
Series Mini-Shaft™
Shape Irregular

Country of Origin: Sweden
