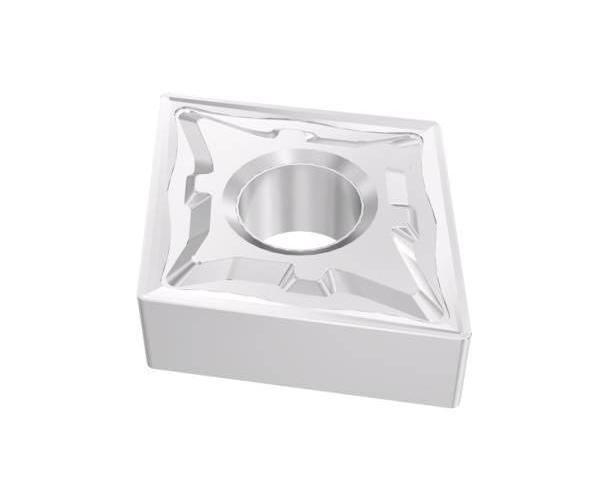

Seco 03273938 CNMG Insert Turning, CNMG Insert, Diamond Shape, Negative Rake, Neutral Cutting, Carbide, Manufacturer's Grade: TM2501


Description

Seco, 03273938, Turning, Insert, Series: CNMG, CNMG Insert, Diamond Shape, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 18.12 mm Length, Negative Rake, M5 Chipbreaker, 1.2 mm Corner Radius, 7.92 mm Diameter Hole, Manufacturer's Grade: TM2501, ISO Code: CNMG190612, 80 deg Included Angle, 17 deg Relief Angle, Neutral Cutting Direction, Carbide, TiCN/Al2O3

Specifications

Chipbreaker M5
Corner Radius 1.2 mm
Cutting Direction Neutral
Finish TiCN/Al2O3
Hole Diameter 7.92 mm
Included Angle 80 deg
Inscribed Circle 19.05 mm
Insert Style CNMG
ISO Code CNMG190612
Length 18.12 mm
Manufacturer's Grade TM2501
Material Carbide
Rake Negative
Relief Angle 17 deg
Series CNMG
Shape Diamond
Thickness 6.35 mm
Type Insert

Country of Origin: Sweden

Standards and Approvals: PROP65

Features

  • Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
  • Duratomic grade,highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness
  • First choice in austenitic stainless steel turning, complements in steel turning with heavy intermittent cuts
  • Used Edge Detection (Chrome)
