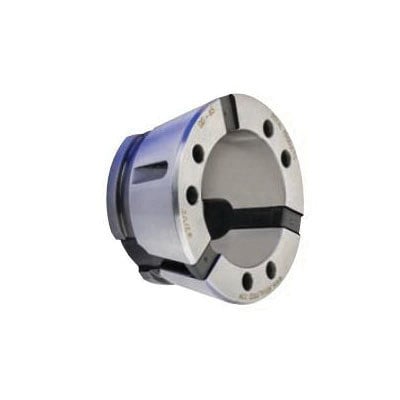

Royal Quick-Grip™ 44229 Round Smooth Bore Collet, QG-65, 1.032 to 1.094 in Capacity

SKU: ROY 44229

Manufacturer Part Number: 44229

Brand: Royal

Description

Royal Quick-Grip™ Collet, Round Smooth Bore, QG-65, 1.032 to 1.094 in, For Use With: CNC Collet Chuck

Country of Origin: United States

Standards and Approvals: UL Listed

Industry-leading 0.062 in gripping range greater than other quick-change collets on the market and more than 12X that of traditional spring collets
Royal Quick-Grip™ collets are precision ground to nominal size, with a gripping range of +/-0.31 in to handle undersized/oversized stock
All Royal Quick-Grip™ collets are designed for minimal projection beyond the chuck face (</=0.020 in) for optimum rigidity and machine work-zone utilization
Vulcanized rubber between the hardened steel collet segments provides outstanding protection against coolant and chip penetration and Royal's advanced vulcanization process carries a lifetime guarantee against failure
Royal Quick-Grip™ collets are compatible with some other brands of quick-change collets
Collet segments can also be carbide-coated for extremely harsh applications
Parallel grip ensures full length part contact for maximum grip force, rigidity and accuracy
Can be counter-bored for increased part capacity up to 3.4 in
Ultra-precision accuracy 0.0002 in TIR or better guaranteed on round-bores
