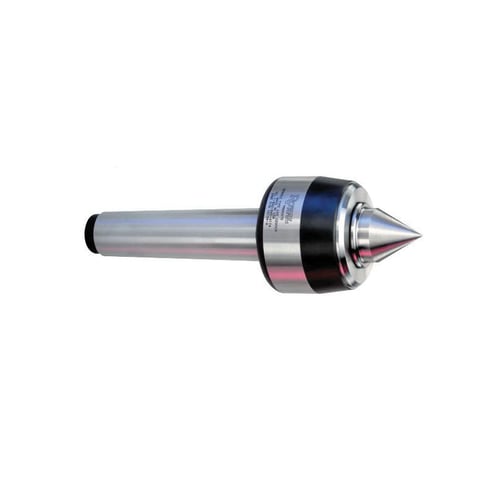

Royal 10105 Heavy Duty Spindle Type Live Center, Tapered Shank, #5 Morse Taper Taper, 3260 lb Max Workpiece, 8960 lb Load


Description

Royal Live Center, Heavy Duty Spindle Type, Tapered Shank, #5 Morse Taper Taper, 3260 lb Maximum Workpiece Weight, Standard Point, 1-1/2 in Point Dia, 1.84 in Point Length, 8960 lb, 3.45 in Head Dia, 2.81 in Head Length, 10-1/4 in Overall Length, 3500 rpm Maximum, 60 deg Included Angle, Double Bearing, Steel, +/-0.00005 in TIR Accuracy

Specifications

Accuracy +/-0.00005 in TIR
Bearing Type Double
Head Diameter 3.45 in
Head Length 2.81 in
Included Angle 60 deg
Load Capacity 8960 lb
Material Steel
Maximum Speed 3500 rpm
Maximum Workpiece Weight 3260 lb
Overall Length 10-1/4 in
Point Diameter 1-1/2 in
Point Length 1.84 in
Point Type Standard
Shank Type Tapered
Taper Size #5 Morse Taper
Type Heavy Duty Spindle Type

Country of Origin: United States

Standards and Approvals: UL Listed

Application:
For handle almost all manual and CNC turning jobs

Features

  • The Royal heavy duty spindle type live center is the most popular live center model, its strong universal design enables it to handle virtually all manual and CNC turning applications
  • The Royal heavy duty spindle type live center is extremely accurate with runout guaranteed to +/- 0.00005 in TIR or better
  • Bearing life is significantly extended with the exclusive Royal Roto-Shield™ coolant slinger and upgraded, long life spring loaded seal that is resistant to abrasion, high temperatures and virtually all metal working fluids
  • The Royal heavy duty spindle type live center incorporates a double row angular contact bearing that provides high work piece weight ratings for turning large and heavy parts
  • A high capacity thrust bearing enables this live center to handle extreme axial loads - one of the primary enemies of any live center
  • The thick, rigid point of the Royal heavy duty spindle type live center extends into the center's shank where it is supported by a large needle bearing for increased strength and vibration dampening
  • Both the point and body of this live center are hardened and ground for strength and extended operating life
  • Made with Roto-Shield™ technology
