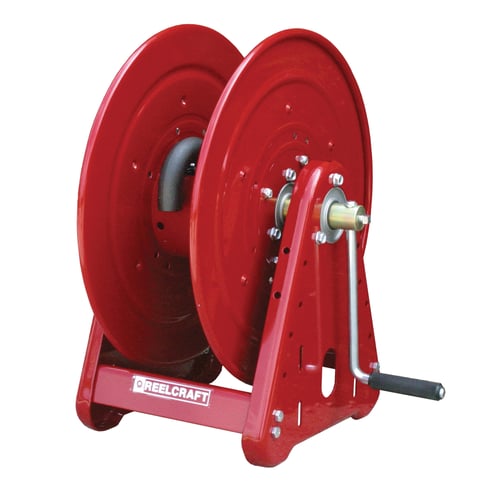

Reelcraft® CA33106 L 30000 Heavy Duty Hose Reel, 3/4 in ID x 1-3/40 in OD x 50 ft L Hose, 1000 psi Pressure, 17-3/4 in Dia x 6 in W Reel


Description

Reelcraft® Hose Reel, Heavy Duty, Series: 30000, 3/4 in ID x 1-3/40 in OD x 50 ft L Hose, 1000 psi, 17-3/4 in Reel Dia, 6 in Reel Width, T-Hand Crank Drive, Bench/Floor/Truck/Wall Mount, Nickel Plated Steel Swivel, 20-1/4 in H x 17-3/4 in W x 19-3/4 in D, Steel, Powder Coated, Red

The series 30000 reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. Series 30000's vibration proof, self-locking fasteners are ideal for industrial or field use such as turf care, pest control and industrial wash down applications.

Specifications

Color Red
Dimensions 20-1/4 in H x 17-3/4 in W x 19-3/4 in D
Drive Type T-Hand Crank
Finish Powder Coated
Hose Capacity 3/4 in ID x 1-3/40 in OD x 50 ft L
Material Steel
Mounting Type Bench/Floor/Truck/Wall
Pressure Rating 1000 psi
Reel Diameter 17-3/4 in
Reel Width 6 in
Series 30000
Swivel Material Nickel Plated Steel
Type Heavy Duty

Country of Origin: United States

Standards and Approvals: PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov

Application:
For industrial or field use such as turf care, pest control and industrial wash down applications

Features

  • Hose replacement made easy - the goose neck can easily be removed to simplify adding long lengths of hose to the reel
  • Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
  • Quality finish and corrosion-resistant - individually powder coated components offer the maximum protection from premature corrosion
  • Easy to add tension - the T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel
  • 3/4 in NPTF female outlet, 3/4 in NPTF female inlet
  • Temperature operating range from -20 deg F (-29 deg C) to 250 deg F (121 deg C)
  • Permanently lubricated dual main bearings
