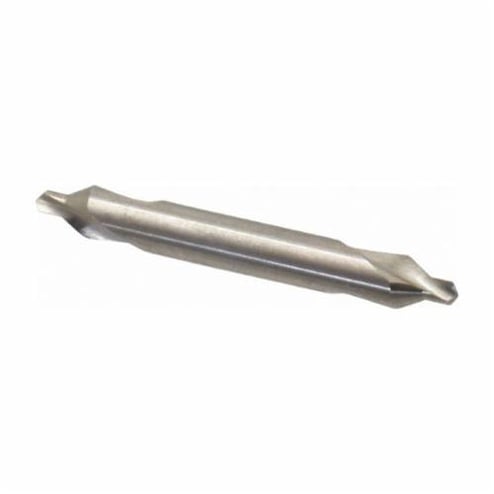

Precision Twist Drill 6001225 76HA Center Drill Regular length Combined Drill and Countersink, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 60 deg Included Angle, HSS, Bright


Description

Precision Twist Drill Combined Drill and Countersink, Center Drill Regular length, Series: 76HA, 1/4 in Drill Size - Fraction, 0.25 in Drill Size - Decimal Inch, #7 Point Dia, 5/8 in Body Dia, 3-1/4 in Overall Length, 1/4 in Flute Length, 5/8 in Shank, Straight Shank, 60 deg Included Angle, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Aluminum, Cast Iron, Copper, Hardened Steel, Magnesium, Nickel, Stainless Steel, Steel, Synthetic Materials and Titanium

Specifications

Applicable Materials Aluminum, Cast Iron, Copper, Hardened Steel, Magnesium, Nickel, Stainless Steel, Steel, Synthetic Materials and Titanium
Body Diameter 5/8 in
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Size - Decimal Inch 0.25 in
Drill Size - Fraction 1/4 in
Finish Bright
Flute Length 1/4 in
Included Angle 60 deg
Material HSS
Overall Length 3-1/4 in
Point Diameter #7
Series 76HA
Shank Size 5/8 in
Shank Type Straight
Type Center Drill Regular length

Country of Origin: United States

Standards and Approvals: ANSI Specified, PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov, CSA Approved

Application:
For general purpose applications on both ferrous and nonferrous materials

Features

  • Bright finish improves chip flow in soft or non-ferrous materials
