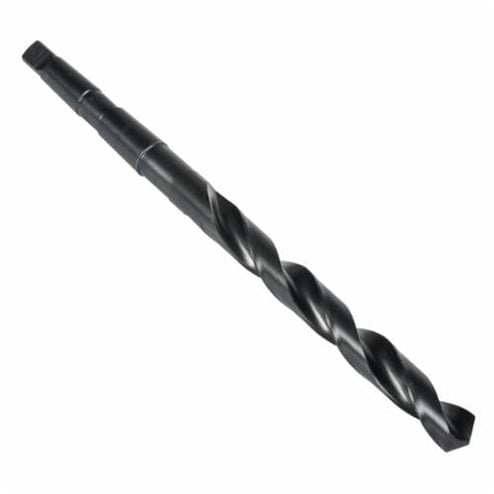

Precision Twist Drill 6001190 209 General Purpose Standard Length Taper Shank Drill Bit, 47/64 in Drill - Fraction, 0.7344 in Drill - Decimal Inch, #2 Morse Taper Shank Taper, HSS


Description

Precision Twist Drill Taper Shank Drill Bit, General Purpose Standard Length, Series: 209, Imperial, 47/64 in Drill - Fraction, 0.7344 in Drill - Decimal Inch, 9-3/4 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 5-7/8 in Flute Length, #2 Morse Taper Shank Taper Designation, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Oxide, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite

Specifications

Applicable Materials Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite
Cutting Depth 4XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.7344 in
Drill Size - Fraction 47/64 in
Finish Steam Oxide
Flute Length 5-7/8 in
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 9-3/4 in
Point Angle 118 deg
Point Type Conventional
Series 209
Shank Taper Designation #2 Morse Taper
Through Coolant (Yes/No) No
Type General Purpose Standard Length

Country of Origin: Brazil

Standards and Approvals: ANSI Specified, CSA Approved

Application:
For general drilling applications

Features

  • Steam oxide for increased tool life and lubricity
  • HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
  • A medium alloyed high speed steel that has good machinability and good performance
