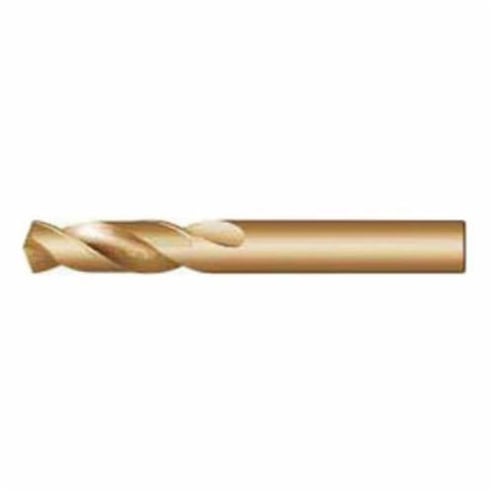

Precision Twist Drill 6000899 4ASMCO Heavy Duty Screw Machine Drill, 4 mm Drill - Metric, 0.1575 in Drill - Decimal Inch, HSS-E, Bronze


Description

Precision Twist Drill Screw Machine Drill, Heavy Duty, Series: 4ASMCO, Metric/Imperial, 4 mm Drill - Metric, 0.1575 in Drill - Decimal Inch, 55 mm Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 22 mm Flute Length, 4 mm Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bronze, Applicable Materials: Steels with Low to High Resistance

Specifications

Applicable Materials Steels with Low to High Resistance
Cutting Depth 2.5XD
Cutting Direction Right Hand
Cutting Edge Material HSS-E
Drill Diameter Measurement System Metric/Imperial
Drill Size - Decimal Inch 0.1575 in
Drill Size - Metric 4 mm
Finish Bronze
Flute Length 22 mm
Flute Type Spiral
Material HSS-E
Number of Flutes 2
Overall Length 55 mm
Point Angle 135 deg
Point Type Split/Self-Centering
Series 4ASMCO
Shank Size 4 mm
Shank Type Straight
Type Heavy Duty

Country of Origin: Brazil

Standards and Approvals: DIN 1897, PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Application:
For general drilling applications

Features

  • Low thrust design self-centering split point for easier penetration
  • Cobalt base material with bronze oxide for wear resistance and lubricity
