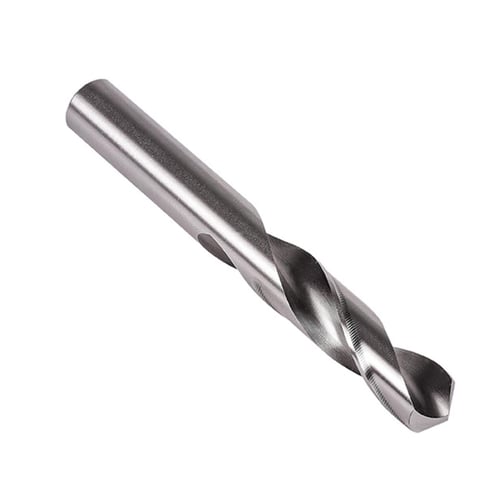

Precision Twist Drill 5999412 R40C Heavy Duty Screw Machine Drill, 11/32 in Drill - Fraction, 0.3438 in Drill - Decimal Inch, HSS, Steam Tempered


Description

Precision Twist Drill Screw Machine Drill, Heavy Duty, Series: R40C, Imperial, 11/32 in Drill - Fraction, 0.3438 in Drill - Decimal Inch, 3 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-11/16 in Flute Length, 11/32 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials

Specifications

Applicable Materials Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
Color Dark Gray
Cutting Depth 2.5XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.3438 in
Drill Size - Fraction 11/32 in
Finish Steam Tempered
Flute Length 1-11/16 in
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 3 in
Point Angle 135 deg
Point Type Split/Self-Centering
Series R40C
Shank Size 11/32 in
Shank Type Straight
Type Heavy Duty

Country of Origin: Brazil

Standards and Approvals: ANSI Specified, NAS 907 Type C, CSA Approved

Application:
For machining operations in screw machines

Features

  • Low thrust design self-centering split point for easier penetration
  • Steam oxide surface treatment for increased wear resistance and lubricity
