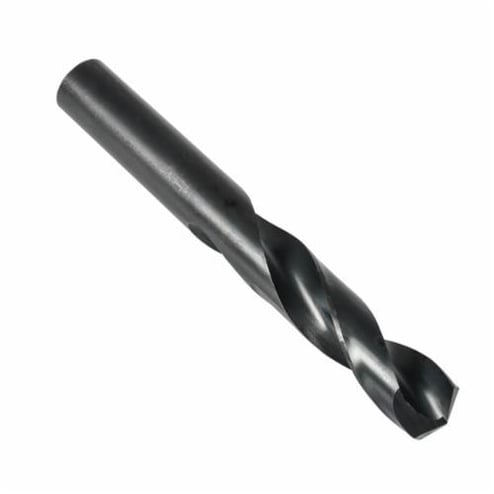

Precision Twist Drill 5999060 R42C General Purpose Stub Length Drill, Y Drill - Letter, 0.404 in Drill - Decimal Inch, HSS, Steam Tempered


Description

Precision Twist Drill Stub Length Drill, General Purpose, Series: R42C, Imperial, Y Drill - Letter, 0.404 in Drill - Decimal Inch, 3-5/16 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-15/16 in Flute Length, 0.4039 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials

Specifications

Applicable Materials Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
Color Dark Gray
Cutting Depth 2.5XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.404 in
Drill Size - Letter Y
Finish Steam Tempered
Flute Length 1-15/16 in
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 3-5/16 in
Point Angle 135 deg
Point Type Split/Self-Centering
Series R42C
Shank Size 0.4039 in
Shank Type Straight
Type General Purpose

Country of Origin: Brazil

Standards and Approvals: ANSI Specified, NAS 907 Type C, CSA Approved

Application:
For machining operations in screw machines

Features

  • Low thrust design self-centering split point for easier penetration
  • Steam oxide surface treatment for increased wear resistance and lubricity
