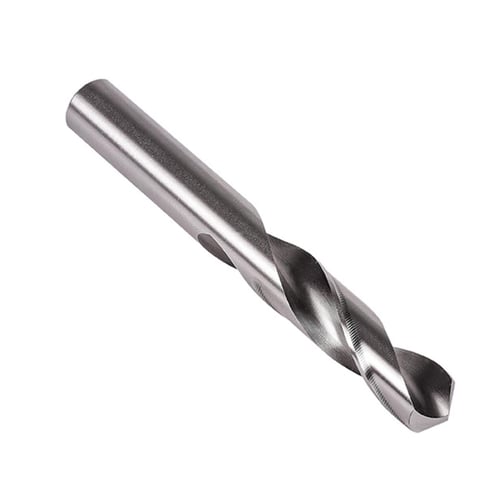

Precision Twist Drill 5998915 R42 General Purpose Screw Machine Drill, F Drill - Letter, 0.257 in Drill - Decimal Inch, HSS, Bright


Description

Precision Twist Drill Screw Machine Drill, General Purpose, Series: R42, Imperial, F Drill - Letter, 0.257 in Drill - Decimal Inch, 2-5/8 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-7/16 in Flute Length, 0.2571 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials

Specifications

Applicable Materials Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
Cutting Depth 2.5XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.257 in
Drill Size - Letter F
Finish Bright
Flute Length 1-7/16 in
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 2-5/8 in
Point Angle 118 deg
Point Type Conventional
Series R42
Shank Size 0.2571 in
Shank Type Straight
Type General Purpose

Country of Origin: Brazil

Standards and Approvals: ANSI Specified, CSA Approved

Application:
For general drilling applications

Features

  • Bright finish improves chip flow in soft or non-ferrous materials
