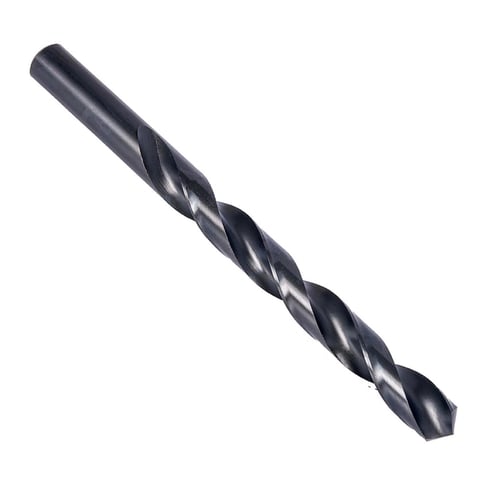

Precision Twist Drill 5998686 R10 General Purpose Jobber Length Drill Bit, 5/8 in Drill - Fraction, 0.625 in Drill - Decimal Inch, 118 deg Point, HSS, Steam Tempered


Description

Precision Twist Drill Jobber Length Drill Bit, General Purpose, Series: R10, Imperial, 5/8 in Drill - Fraction, 0.625 in Drill - Decimal Inch, 7-1/8 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 5-3/16 in Flute Length, 5/8 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze

Specifications

Applicable Materials Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze
Color Dark Gray
Cutting Depth 4XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.625 in
Drill Size - Fraction 5/8 in
Finish Steam Tempered
Flute Length 5-3/16 in
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 7-1/8 in
Point Angle 118 deg
Point Type Conventional
Series R10
Shank Size 5/8 in
Shank Type Straight
Through Coolant (Yes/No) No
Type General Purpose

Country of Origin: Brazil

Standards and Approvals: ANSI Specified, CSA Approved

Features

  • Steam oxide reduces wear and chip welding in harder ferrous materials for increased wear resistance and lubricity
