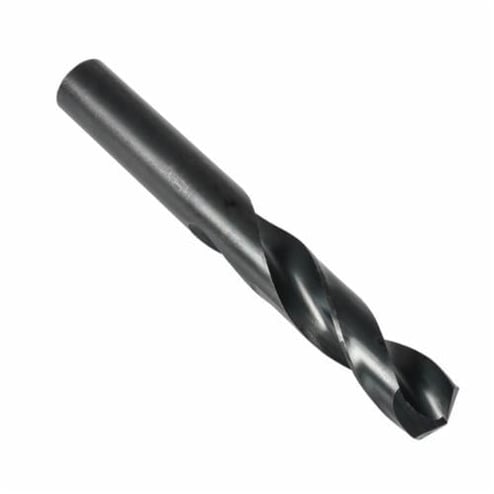

Precision Twist Drill 5998573 R41C Heavy Duty Screw Machine Drill, #37 Drill - Wire, 0.104 in Drill - Decimal Inch, HSS, Steam Tempered


Description

Precision Twist Drill Screw Machine Drill, Heavy Duty, Series: R41C, Imperial, #37 Drill - Wire, 0.104 in Drill - Decimal Inch, 1-13/16 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 13/16 in Flute Length, 0.104 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Alloy Steel, Brass, Bronze, Copper, Ferritic + Austenitic, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium

Specifications

Applicable Materials Alloy Steel, Brass, Bronze, Copper, Ferritic + Austenitic, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium
Color Dark Gray
Cutting Depth 2.5XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.104 in
Drill Size - Wire #37
Finish Steam Tempered
Flute Length 13/16 in
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 1-13/16 in
Point Angle 135 deg
Point Type Split/Self-Centering
Series R41C
Shank Size 0.104 in
Shank Type Straight
Type Heavy Duty

Country of Origin: Brazil

Standards and Approvals: ANSI Specified, NAS 907 Type C, CSA Approved

Application:
For machining operations in screw machines

Features

  • Low thrust design self-centering split point for easier penetration
  • Steam oxide surface treatment for increased wear resistance and lubricity
