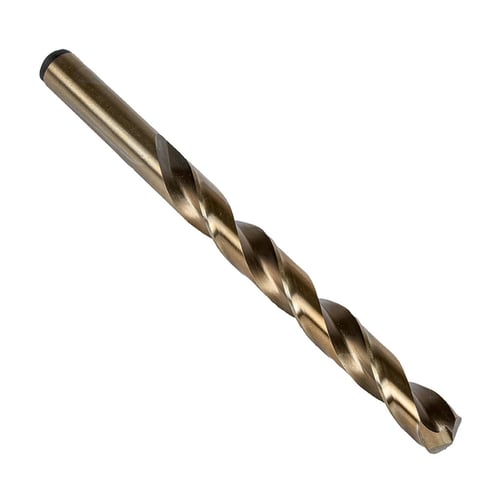

Precision Twist Drill 5998231 R10CO Heavy Duty Jobber Length Drill Bit, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 135 deg Point, HSS-E, Bronze Oxide


Description

Precision Twist Drill Jobber Length Drill Bit, Heavy Duty, Series: R10CO, Imperial, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 4-1/4 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 2-15/16 in Flute Length, 9/32 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, No Through Coolant, HSS-E, Bronze Oxide, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze

Specifications

Applicable Materials Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze
Cutting Depth 4XD
Cutting Direction Right Hand
Cutting Edge Material HSS-E
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.2812 in
Drill Size - Fraction 9/32 in
Finish Bronze Oxide
Flute Length 2-15/16 in
Flute Type Spiral
Material HSS-E
Number of Flutes 2
Overall Length 4-1/4 in
Point Angle 135 deg
Point Type Split/Self-Centering
Series R10CO
Shank Size 9/32 in
Shank Type Straight
Through Coolant (Yes/No) No
Type Heavy Duty

Country of Origin: Brazil

Standards and Approvals: ANSI Specified, NAS 907 Type J, PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov, CSA Approved

Application:
For used with hand held manual drills and either portable or stationary machines

Features

  • Low thrust design self-centering split point for easier penetration
  • Cobalt base material with bronze oxide for wear resistance and lubricity
  • For enhanced tool life in ferrous materials
