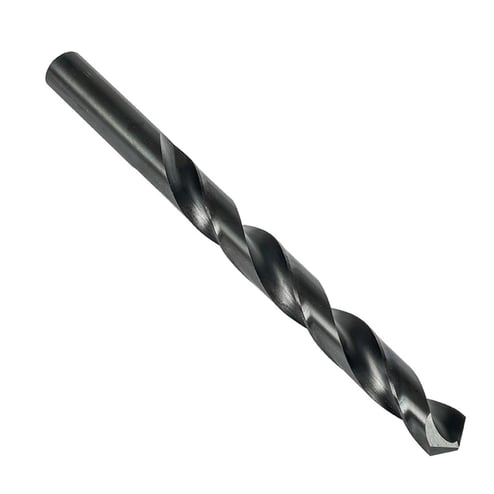

Precision Twist Drill 5997503 R10A General Purpose Heavy Duty Jobber Length Drill Bit, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 118 deg Point, HSS, Steam Tempered


Description

Precision Twist Drill Jobber Length Drill Bit, General Purpose Heavy Duty, Series: R10A, Imperial, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 6 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 4-1/2 in Flute Length, 1/2 in Shank, Straight Shank, 118 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Nickel, Copper, Brass and Bronze

Specifications

Applicable Materials Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Nickel, Copper, Brass and Bronze
Color Dark Gray
Cutting Depth 4XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.5 in
Drill Size - Fraction 1/2 in
Finish Steam Tempered
Flute Length 4-1/2 in
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 6 in
Point Angle 118 deg
Point Type Split/Self-Centering
Series R10A
Shank Size 1/2 in
Shank Type Straight
Through Coolant (Yes/No) No
Type General Purpose Heavy Duty

Country of Origin: Brazil

Standards and Approvals: ANSI Specified, NAS 907 Type A, CSA Approved

Application:
For general drilling applications

Features

  • Low thrust design self-centering split point for easier penetration
  • Steam oxide surface treatment for increased wear resistance and lubricity
