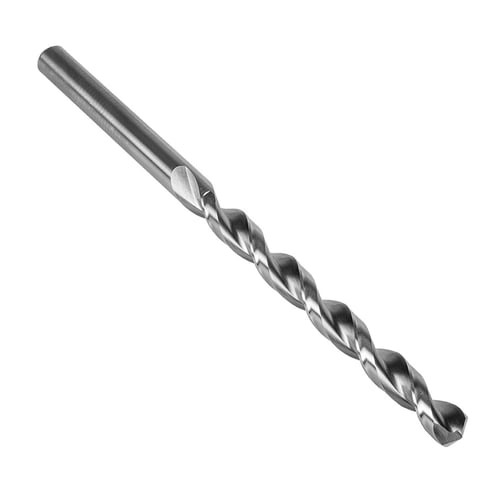

Precision Twist Drill 5997089 QC91P General Purpose Precision Twist Drill Taper Length Drill, #3 Drill - Wire, 0.213 in Drill - Decimal Inch, 6 in OAL, HSS, Bright


Description

Precision Twist Drill Precision Twist Drill Taper Length Drill, General Purpose, Series: EF Series TA203344, #3 Drill Size - Wire, 0.213 in Drill Size - Decimal Inch, 6 in Overall Length, 6XD Cutting Depth, 2 Flutes, Parabolic Flute, 3-5/8 in Flute Length, 0.213 in Shank, Straight Shank, 135 deg Point, Radius Split Point, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Lamellar Graphite, Alloy Steel/Hardened Steel, Tempered Steel, Free Machining Stainless Steel, Austenitic and Ferritic + Austenitic Martensitic

Specifications

Applicable Materials Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Lamellar Graphite, Alloy Steel/Hardened Steel, Tempered Steel, Free Machining Stainless Steel, Austenitic and Ferritic + Austenitic Martensitic
Cutting Depth 6XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Size - Decimal Inch 0.213 in
Drill Size - Wire #3
Finish Bright
Flute Length 3-5/8 in
Flute Type Parabolic
Material HSS
Number of Flutes 2
Overall Length 6 in
Point Angle 135 deg
Point Type Radius Split
Series QC91P
Shank Size 0.213 in
Shank Type Straight
Type General Purpose

Country of Origin: France

Standards and Approvals: ANSI Specified, CSA Approved

Application:
For general drilling applications

Features

  • High speed steel (HSS) provides good wear-resistance
  • Bright provides a smooth, polished finish on the tool
  • It increases chip flow in softer materials such as aluminum, wood and plastic
  • Parabolic flutes are constructed with a wider flute shape for increased chip flow
  • Web-thinned
  • Tapered web configuration
  • No coolant channel
