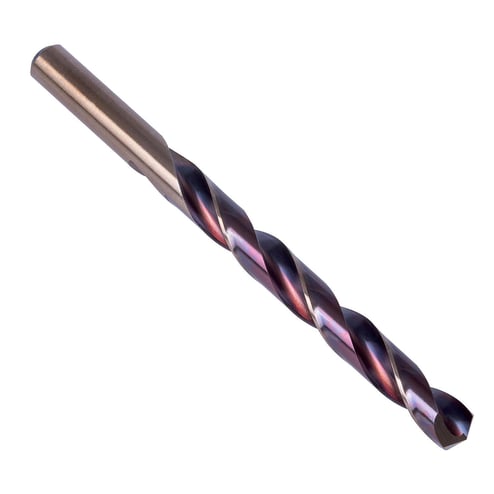

Precision Twist Drill 5995815 HX18 General Purpose Heavy Duty Jobber Length Drill Bit, #27 Drill - Wire, 0.144 in Drill - Decimal Inch, 135 deg Point, HSS, Purple/Bronze


Description

Precision Twist Drill Jobber Length Drill Bit, General Purpose Heavy Duty, Series: HX18, Imperial, #27 Drill - Wire, 0.144 in Drill - Decimal Inch, 3 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 1-7/8 in Flute Length, 0.144 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Purple/Bronze, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Lamellar Graphite, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Martensitic, Titanium Unalloyed, Alloyed Titanium and Nickel Unalloyed

Specifications

Applicable Materials Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Lamellar Graphite, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Martensitic, Titanium Unalloyed, Alloyed Titanium and Nickel Unalloyed
Cutting Depth 4XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.144 in
Drill Size - Wire #27
Finish Purple/Bronze
Flute Length 1-7/8 in
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 3 in
Point Angle 135 deg
Point Type Split/Self-Centering
Series HX18
Shank Size 0.144 in
Shank Type Straight
Through Coolant (Yes/No) No
Type General Purpose Heavy Duty

Country of Origin: Brazil

Standards and Approvals: ANSI Specified, CSA Approved

Application:
For general drilling applications

Features

  • Low thrust design self-centering split point for easier penetration
  • Stronger and more rigid
  • Unique surface treatment for improved wear resistance in hard ferrous alloys
