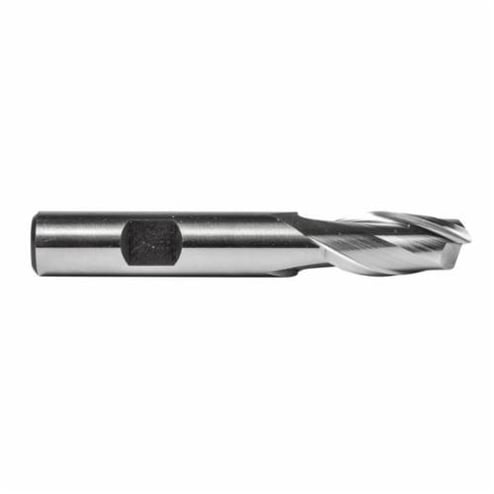

Union Butterfield® 5110326 920 Center Cutting Regular Length Single End Square End End Mill, 1 in Dia Cutter, 1-5/8 in Length of Cut, 2 Flutes, 1 in Dia Shank, 4-1/2 in OAL, Bright


Description

Union Butterfield® End Mill, Center Cutting Regular Length Single End Square End, Series: 920, 1 in Diameter Cutter, 4-1/2 in Overall Length, 1-5/8 in Length of Cut, 2 Flutes, Spiral Flute, 1 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS, Bright

Specifications

Cutter Diameter 1 in
Cutting Direction Right Hand
Finish Bright
Flute Type Spiral
Helix Angle 30 deg
Length of Cut 1-5/8 in
Material HSS
Number of Flutes 2
Overall Length 4-1/2 in
Series 920
Shank Diameter 1 in
Shank Type Weldon Flat
Type Center Cutting Regular Length Single End Square End

Standards and Approvals: ANSI Specified, CSA Approved

Application:
For slot milling and ramping operations

Features

  • High speed steel (HSS) provides good wear resistance
  • Bright provides a smooth, polished finish on the tool
  • It increases chip flow in softer materials such as aluminum, wood and plastic
  • Square nose end mills create sharp, unrounded cuts
  • Center-cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
  • For use with aluminum/aluminum alloys, cast iron, nickel/nickel alloys, steel/steel alloys, titanium/titanium alloys
