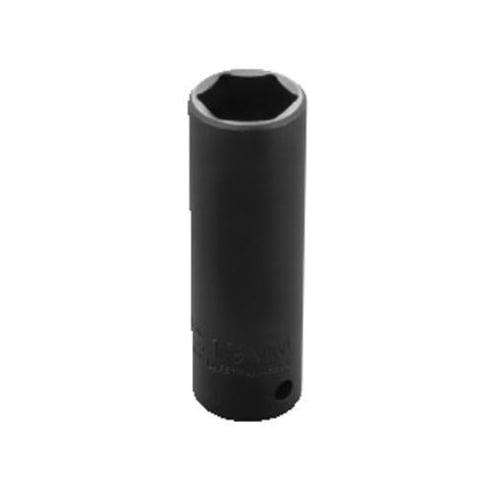

Proto® TorquePlus™ J7336HT Deep Length Thin Wall Socket, Imperial, 1/2 in Square Drive, 1-1/8 in


Description

Proto® TorquePlus™ Socket, Deep Length Thin Wall, Yes Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 1-1/8 in Socket, 3-1/2 in Overall Length, 1-17/32 in Opening Depth, 1-9/16 in Drive End Width, 1-9/16 in Socket End Width, Side Locking Hole Locking, 6 Points, 1-5/16 in Bolt Clearance Depth, Alloy Steel, Black Oxide

Specifications

Bolt Clearance Depth 1-5/16 in
Drive End Width 1-9/16 in
Drive Size 1/2 in
Drive Type Square
Finish Black Oxide
Impact Rated Yes
Locking Type Side Locking Hole
Material Alloy Steel
Measurement System Imperial
Number of Points 6
Opening Depth 1-17/32 in
Overall Length 3-1/2 in
Socket End Width 1-9/16 in
Socket Size 1-1/8 in
Type Deep Length Thin Wall

Country of Origin: United States

Standards and Approvals: ASME B107.110-2012, ASME B107.2

Application:
For use on stubborn or damaged fasteners and also on fasteners made from soft materials, light clearance applications

Features

  • Reduced wall thickness helps improve access to fasteners in restricted areas
  • All impact sockets feature one through hole and a groove to accept a retaining ring and pin to secure the socket to the power tool anvil
  • Chamfered service ends for quick and positive fastener engagement
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • Thin wall sockets are lightweight
  • Designed to fit into smaller spaces
  • Thinner walls help improve productivity by making it easier to gain access to fasteners in confined spaces
  • Extra deep length helps improve access in confined areas
  • Often used in application where fasteners are close together, such as tire service
