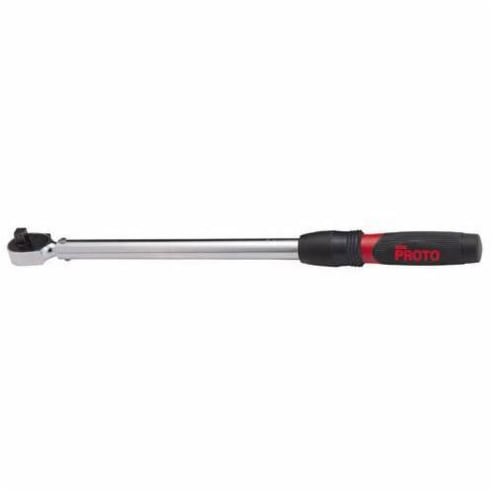

Proto® J6018AB Micrometer Torque Wrench, 3/4 in Drive, 60 to 300 ft-lb, Ratcheting Head, 2 ft-lb Graduation, 32 in OAL, ASME B107.14M


Description

Proto® Micrometer Torque Wrench, 3/4 in Drive, 60 to 300 ft-lb, Ratcheting, Graduations: 2 ft-lb, 32 in Overall Length, CW/CCW, +/-3% CW, +/-6% CCW Accuracy, Setting: Automatic Reset, 5000 Cycles Minimum, Audible Click Indicator, Knurled Grip, Specifications Met: ASME B107.14M, Steel, Full Polished

Specifications

Accuracy +/-3% CW, +/-6% CCW
Drive Size 3/4 in
Finish Full Polished
Graduations 2 ft-lb
Handle Type Knurled Grip
Head Type Ratcheting
Indicator Type Audible Click
Material Steel
Minimum Number of Cycles 5000
Overall Length 32 in
Rotation Type CW/CCW
Setting Automatic Reset
Specifications Met ASME B107.14M
Torque Range 60 to 300 ft-lb

Country of Origin: United States

Standards and Approvals: ASME B107.14

Application:
Military and Aerospace Applications

Features

  • Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
  • Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
  • 45-tooth gear/floating pawl design for small 6.8 in arc swing
  • 13% smaller head for access in tight work areas
  • Reversing lever designed for quick, 1-hand operation
  • Calibrated Plus or Minus 2%
