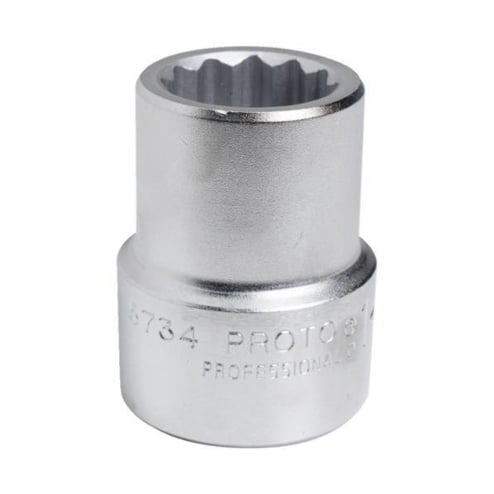

Proto® TorquePlus™ J5776 Standard Length Socket, Imperial, 1 in Square Drive, 2-3/8 in


Description

Proto® TorquePlus™ Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1 in Drive, 2-3/8 in Socket, 4 in Overall Length, 1-1/2 in Opening Depth, 2-13/32 in Drive End Width, 3-17/64 in Socket End Width, Ball Locking, 12 Points, 2-11/32 in Bolt Clearance Depth, Alloy Steel, Satin

Specifications

Bolt Clearance Depth 2-11/32 in
Drive End Width 2-13/32 in
Drive Size 1 in
Drive Type Square
Finish Satin
Impact Rated No
Locking Type Ball
Material Alloy Steel
Measurement System Imperial
Number of Points 12
Opening Depth 1-1/2 in
Overall Length 4 in
Socket End Width 3-17/64 in
Socket Size 2-3/8 in
Type Standard Length

Country of Origin: United States

Standards and Approvals: ASME B107.110-2012, AS954E S3.8.1, Federal Specification GGG-W-641E

Application:
For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Features

  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • The TorquePlus™ design allows more torque to be put on the fastener while reducing fastener
