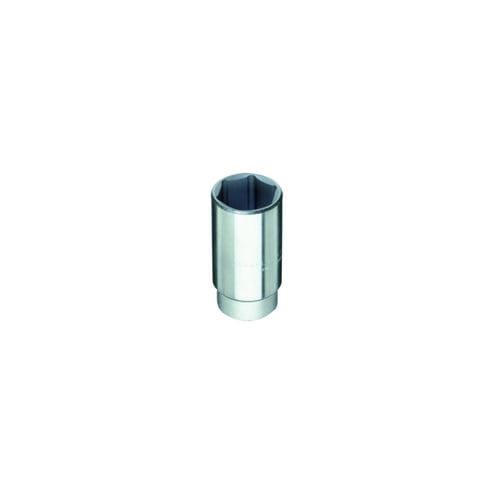

Proto® TorquePlus™ J5542HL Deep Length Socket, Imperial, 3/4 in Square Drive, 1-5/16 in


Description

Proto® TorquePlus™ Socket, Deep Length, No Impact Rated, Measurement System: Imperial, Square Drive, 3/4 in Drive, 1-5/16 in Socket, 3-1/2 in Overall Length, 27/32 in Opening Depth, 1-21/32 in Drive End Width, 1-55/64 in Socket End Width, Ball Locking, 6 Points, 2-19/64 in Bolt Clearance Depth, Alloy Steel, Satin

Specifications

Bolt Clearance Depth 2-19/64 in
Drive End Width 1-21/32 in
Drive Size 3/4 in
Drive Type Square
Finish Satin
Impact Rated No
Locking Type Ball
Material Alloy Steel
Measurement System Imperial
Number of Points 6
Opening Depth 27/32 in
Overall Length 3-1/2 in
Socket End Width 1-55/64 in
Socket Size 1-5/16 in
Type Deep Length

Country of Origin: United States

Standards and Approvals: ASME B107.110-2012

Application:
For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Features

  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • Heat treated for strength and durability
  • Hand use only
  • Ball detent design
