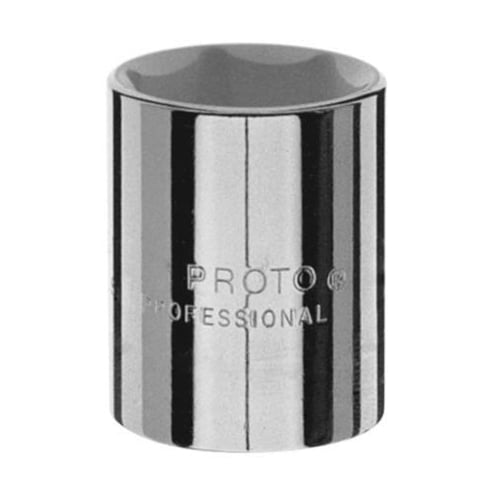

Proto® TorquePlus™ J5426H Standard Length Socket, Imperial, 1/2 in Square Drive, 13/16 in


Description

Proto® TorquePlus™ Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 13/16 in Socket, 1-1/2 in Overall Length, 11/16 in Opening Depth, 1-3/32 in Drive End Width, 1-3/32 in Socket End Width, Ball Locking, 6 Points, 21/32 in Bolt Clearance Depth, Alloy Steel, Full Polished

Specifications

Bolt Clearance Depth 21/32 in
Drive End Width 1-3/32 in
Drive Size 1/2 in
Drive Type Square
Finish Full Polished
Impact Rated No
Locking Type Ball
Material Alloy Steel
Measurement System Imperial
Number of Points 6
Opening Depth 11/16 in
Overall Length 1-1/2 in
Socket End Width 1-3/32 in
Socket Size 13/16 in
Type Standard Length

Country of Origin: United States

Standards and Approvals: ANSI B107.1, ASME B107.110-2012, Federal Specification GGG-W-641E

Application:
For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Features

  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ design allows more torque to be put on the fastener while reducing fastener and allows the user to more easily turn worn, rounded or rusted fasteners
