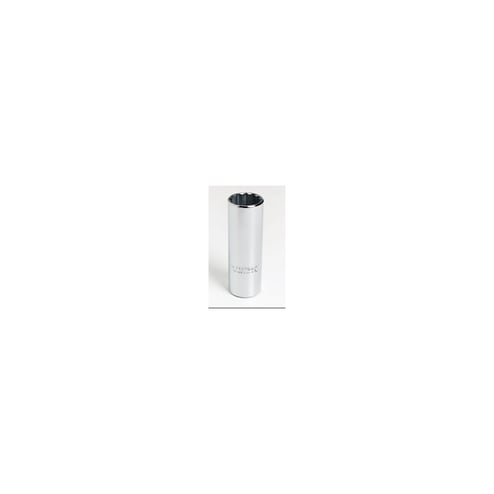

Proto® TorquePlus™ J5331M Deep Length Socket, Metric, 1/2 in Square Drive, 31 mm


Description

Proto® TorquePlus™ Socket, Deep Length, No Impact Rated, Measurement System: Metric, Square Drive, 1/2 in Drive, 31 mm Socket, 82.5 mm Overall Length, 28 mm Opening Depth, 40.7 mm Drive End Width, 40.7 mm Socket End Width, Ball Locking, 12 Points, 66.5 mm Bolt Clearance Depth, Alloy Steel, Full Polished

Specifications

Bolt Clearance Depth 66.5 mm
Drive End Width 40.7 mm
Drive Size 1/2 in
Drive Type Square
Finish Full Polished
Impact Rated No
Locking Type Ball
Material Alloy Steel
Measurement System Metric
Number of Points 12
Opening Depth 28 mm
Overall Length 82.5 mm
Socket End Width 40.7 mm
Socket Size 31 mm
Type Deep Length

Country of Origin: United States

Standards and Approvals: ASME B107.110-2012, AS954E S3.8.1

Application:
For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Features

  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
