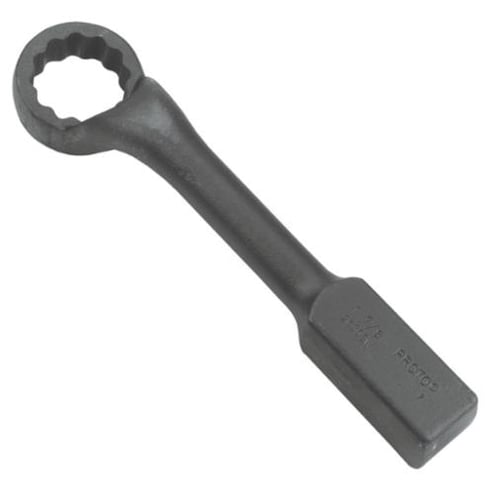

Proto® J2616SW Heavy Duty Striking Wrench, Imperial, 1 in Box End Wrench, 12 Points, 8-1/2 in OAL, 5/8 in THK Box End, Black Oxide


Description

Proto® Striking Wrench, Heavy Duty, Measurement System: Imperial, Box End Wrench Type, 1 in Wrench Opening, 12 Points, 8-1/2 in Overall Length, 60 deg Offset, 15/16 in Offset, 1-25/32 in Box End Width, 5/8 in Box End Thickness, Offset/Short/Straight Handle, Federal GGG-W-636E Specifications Met, Alloy Steel, Black Oxide

Specifications

Box End Thickness 5/8 in
Box End Width 1-25/32 in
Finish/Coating Black Oxide
Handle Type Offset/Short/Straight
Material Alloy Steel
Measurement System Imperial
Number of Points 12
Offset Angle 60 deg
Offset Size 15/16 in
Overall Length 8-1/2 in
Specifications Met Federal GGG-W-636E
Type Heavy Duty
Wrench Opening 1 in
Wrench Type Box End

Standards and Approvals: US Federal Specification GGG-W-636E

Application:
For use where extreme force is necessary to loosen or set large fasteners

Features

  • Large striking surface for surer blow contact and more efficient transmittal of force to fastener
  • Short handle permits use in close quarters
  • Box opening designed to remain on fastener when wrench is struck
  • Heavy box walls provide greater torque transmission
  • Straight handle design helps prevent the wrench from cocking when struck
  • Offset handle clears obstructions
