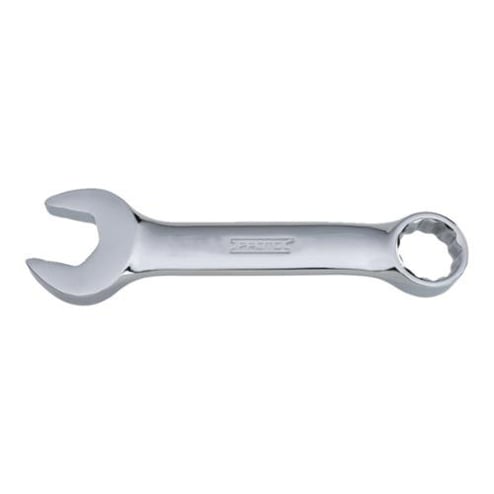

Proto® TorquePlus™ J1215MES Combination Wrench, 15 mm Wrench, 12 Points, 15 deg Offset, 4-11/16 in OAL, Alloy Steel, Full Polished, ASME B107.100-2010


Description

Proto® TorquePlus™ Combination Wrench, Measurement System: Metric, 15 mm Wrench Opening, 12 Points, 4-11/16 in Overall Length, 15 deg Offset, 1-5/16 in Open End Width, 13/32 in Open End Thickness, 29/32 in Box End Width, 25/64 in Box End Thickness, 15 deg Head, Specifications Met: ASME B107.100-2010, 45/64 in Throat Depth, Short Handle, Alloy Steel, Full Polished

Specifications

Box End Thickness 25/64 in
Box End Width 29/32 in
Finish/Coating Full Polished
Handle Type Short
Head Angle 15 deg
Material Alloy Steel
Measurement System Metric
Number of Points 12
Offset Angle 15 deg
Open End Thickness 13/32 in
Open End Width 1-5/16 in
Overall Length 4-11/16 in
Specifications Met ASME B107.100-2010
Throat Depth 45/64 in
Wrench Opening 15 mm

Country of Origin: United States

Features

  • 12 point box end allows for fine indexing, helping to improve speed and access, fits 4, 6 and 12 point fasteners
  • The wrench self-aligns with the fastener
  • The box end is countersunk for easy application to the fastener
  • 15 deg angled offset helps keep shank clear of obstructions
  • Anti-slip design (ASD) open end
  • Box ends incorporate the TorquePlus™ system
