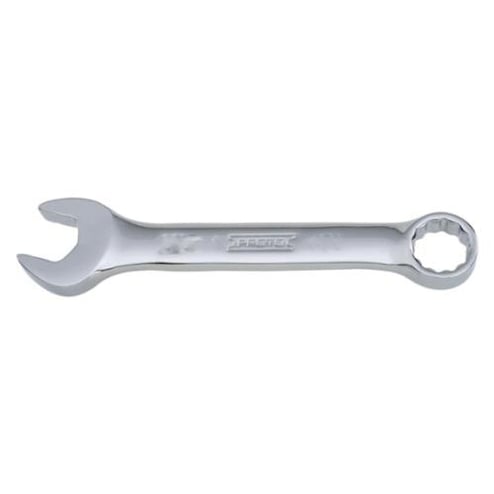

Proto® TorquePlus™ J1210MES Combination Wrench, 10 mm Wrench, 12 Points, 15 deg Offset, 3-3/4 in OAL, Alloy Steel, Full Polished, ASME B107.100-2010


Description

Proto® TorquePlus™ Combination Wrench, Measurement System: Metric, 10 mm Wrench Opening, 12 Points, 3-3/4 in Overall Length, 15 deg Offset, 7/8 in Open End Width, 7/32 in Open End Thickness, 39/64 in Box End Width, 9/32 in Box End Thickness, 15 deg Head, Specifications Met: ASME B107.100-2010, 7/16 in Throat Depth, Short Handle, Alloy Steel, Full Polished

Specifications

Box End Thickness 9/32 in
Box End Width 39/64 in
Finish/Coating Full Polished
Handle Type Short
Head Angle 15 deg
Material Alloy Steel
Measurement System Metric
Number of Points 12
Offset Angle 15 deg
Open End Thickness 7/32 in
Open End Width 7/8 in
Overall Length 3-3/4 in
Specifications Met ASME B107.100-2010
Throat Depth 7/16 in
Wrench Opening 10 mm

Country of Origin: United States

Features

  • 12 point box end allows for fine indexing, helping to improve speed and access, fits 4, 6 and 12 point fasteners
  • The wrench self-aligns with the fastener
  • The box end is countersunk for easy application to the fastener
  • 15 deg angled offset helps keep shank clear of obstructions
  • Anti-slip design (ASD) open end
  • Box ends incorporate the TorquePlus™ system
