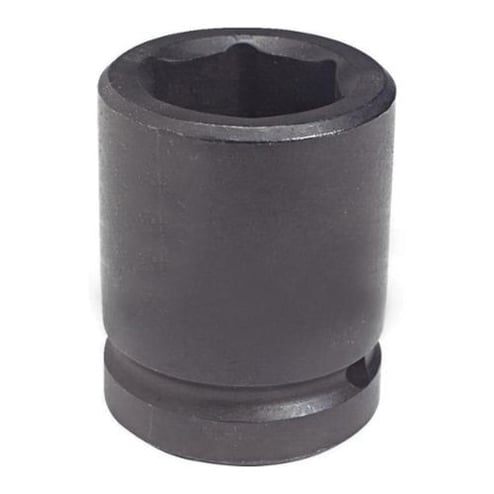

Proto® TorquePlus™ J10033M Standard Length Socket, Metric, 1 in Square Drive, 33 mm


Description

Proto® TorquePlus™ Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Square Drive, 1 in Drive, 33 mm Socket, 69.9 mm Overall Length, 25.4 mm Opening Depth, 53.9 mm Drive End Width, 53.9 mm Socket End Width, Side Locking Hole Locking, 6 Points, 31.8 mm Bolt Clearance Depth, Alloy Steel, Black Oxide

Specifications

Bolt Clearance Depth 31.8 mm
Drive End Width 53.9 mm
Drive Size 1 in
Drive Type Square
Finish Black Oxide
Impact Rated Yes
Locking Type Side Locking Hole
Material Alloy Steel
Measurement System Metric
Number of Points 6
Opening Depth 25.4 mm
Overall Length 69.9 mm
Socket End Width 53.9 mm
Socket Size 33 mm
Type Standard Length

Country of Origin: United States

Standards and Approvals: ASME B107.110-2012, ASME B107.33M

Application:
For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Features

  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • Stamped size for easy reference
