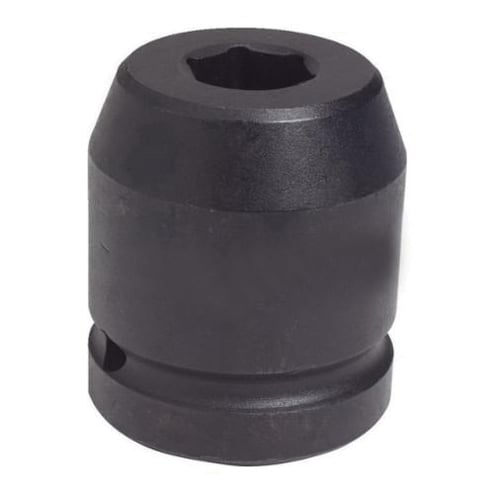

Proto® TorquePlus™ J10017 Standard Length Socket, Imperial, 1 in Square Drive, 1-1/16 in


Description

Proto® TorquePlus™ Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 1 in Drive, 1-1/16 in Socket, 2-5/8 in Overall Length, 7/8 in Opening Depth, 2-1/8 in Drive End Width, 1-3/4 in Socket End Width, Side Locking Hole Locking, 6 Points, 1-1/2 in Bolt Clearance Depth, Alloy Steel, Black Oxide

Specifications

Bolt Clearance Depth 1-1/2 in
Drive End Width 2-1/8 in
Drive Size 1 in
Drive Type Square
Finish Black Oxide
Impact Rated Yes
Locking Type Side Locking Hole
Material Alloy Steel
Measurement System Imperial
Number of Points 6
Opening Depth 7/8 in
Overall Length 2-5/8 in
Socket End Width 1-3/4 in
Socket Size 1-1/16 in
Type Standard Length

Country of Origin: United States

Standards and Approvals: ASME B107.2

Application:
For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Features

  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
