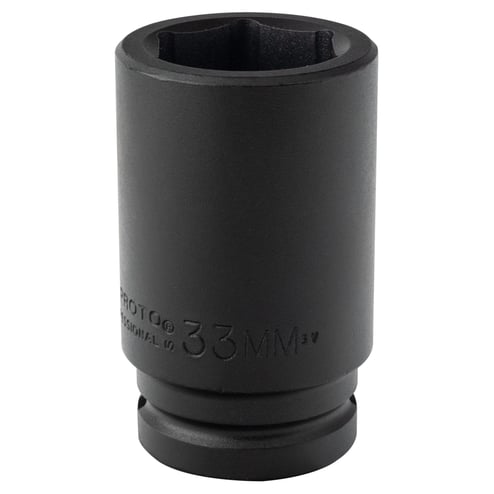

Proto® TorquePlus™ J07533ML Deep Length Socket, Metric, 3/4 in Square Drive, 33 mm


Description

Proto® TorquePlus™ Socket, Deep Length, Yes Impact Rated, Measurement System: Metric, Square Drive, 3/4 in Drive, 33 mm Socket, 82.6 mm Overall Length, 25.4 mm Opening Depth, 44.4 mm Drive End Width, 50.8 mm Socket End Width, Side Locking Hole Locking, 6 Points, 58 mm Bolt Clearance Depth, High Alloy Steel, Black Oxide

Specifications

Bolt Clearance Depth 58 mm
Drive End Width 44.4 mm
Drive Size 3/4 in
Drive Type Square
Finish Black Oxide
Impact Rated Yes
Locking Type Side Locking Hole
Material High Alloy Steel
Measurement System Metric
Number of Points 6
Opening Depth 25.4 mm
Overall Length 82.6 mm
Socket End Width 50.8 mm
Socket Size 33 mm
Type Deep Length

Country of Origin: United States

Standards and Approvals: ASME B107.110, ASME B107.33M

Application:
For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Features

  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • Stamped size for easy reference
  • Specially heat treated for the correct balance of strength and durability
  • Concentric openings
  • Large clearance holes
  • Tight nut end tolerances
  • Made from high alloy steel for greater strength
