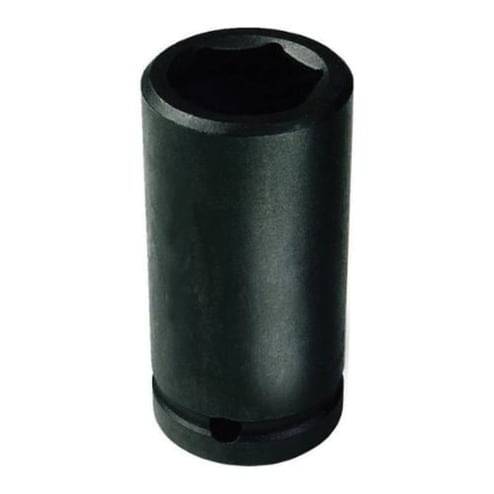

Proto® TorquePlus™ J07530L Deep Length Socket, 3/4 in Square Drive, 1-7/8 in, 6 Points


Description

Proto® TorquePlus™ Socket, Deep Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 3/4 in Drive, 1-7/8 in Socket, 4-1/16 in Overall Length, 2-3/8 in Opening Depth, 1-3/4 in Drive End Width, 2-3/4 in Socket End Width, Side Locking Hole Locking, 6 Points, 3-1/8 in Bolt Clearance Depth, High Alloy Steel, Black Oxide

Specifications

Bolt Clearance Depth 3-1/8 in
Drive End Width 1-3/4 in
Drive Size 3/4 in
Drive Type Square
Finish Black Oxide
Impact Rated Yes
Locking Type Side Locking Hole
Material High Alloy Steel
Measurement System Imperial
Number of Points 6
Opening Depth 2-3/8 in
Overall Length 4-1/16 in
Socket End Width 2-3/4 in
Socket Size 1-7/8 in
Type Deep Length

Warranty: Limited Lifetime

Country of Origin: United States

Standards and Approvals: ASME B107.2

Application:
For use on stubborn or damaged fasteners and also on fasteners made from soft materials

Features

  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • Stamped size for easy reference
  • Specially heat treated for the correct balance of strength and durability
  • Concentric openings
  • Large clearance holes
  • Tight nut end tolerances
  • Made from high alloy steel for greater strength
