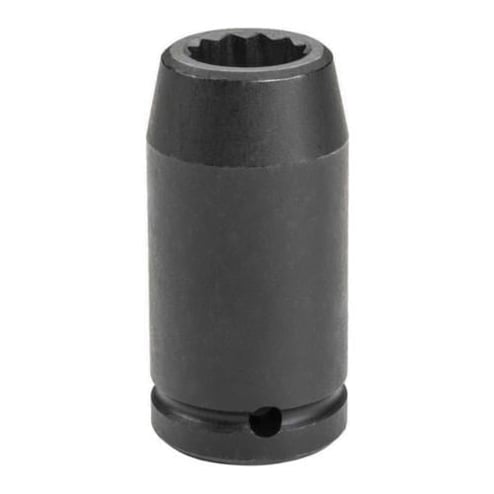

Proto® TorquePlus™ J07519MLT Deep Length Socket, 3/4 in Square Drive, 19 mm, 12 Points


Description

Proto® TorquePlus™ Socket, Deep Length, Series, Yes Impact Rated, Measurement System, Square Drive, Drive Size, in 3/4, Socket Size, mm 19, 3-7/64 Overall Length, Opening Depth in, in 7/16, 1-5/8 Drive End Width, Socket End Width in, in 1-1/4, Side Locking Hole Locking, Number of Points, Bolt Clearance Depth, in 2-1/4, Alloy Steel, Finish

Specifications

Bolt Clearance Depth 2-1/4 in
Drive End Width 1-5/8 in
Drive Size 3/4 in
Drive Type Square
Finish Black Oxide
Impact Rated Yes
Locking Type Side Locking Hole
Material Alloy Steel
Measurement System Metric
Number of Points 12
Opening Depth 7/16 in
Overall Length 3-7/64 in
Socket End Width 1-1/4 in
Socket Size 19 mm
Type Deep Length

Country of Origin: United States

Standards and Approvals: ASME B107.110/B107.33M

Application:
For use on stubborn or damaged fasteners, and also on fasteners made from soft materials

Features

  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
  • Stamped size for easy reference
