Pramet 6753850 Turning Insert, ANSI Code: TNMG 432-M T9325, TNMG Insert, Material Grade: K, M, P, S, 432 Insert, Triangular Shape, 22 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys, Carbide


Description

Pramet Turning Insert, TNMG Insert, 432 Insert, Triangular, 6 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 3/16 in Thickness, 22 mm Length, 22 Seat, Negative Rake, M Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturer's Grade: T9325, ANSI Code: TNMG 432-M T9325, ISO Code: TNMG 220408E-M T9325, 60 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: K, M, P, S, For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

Specifications

ANSI Code TNMG 432-M T9325

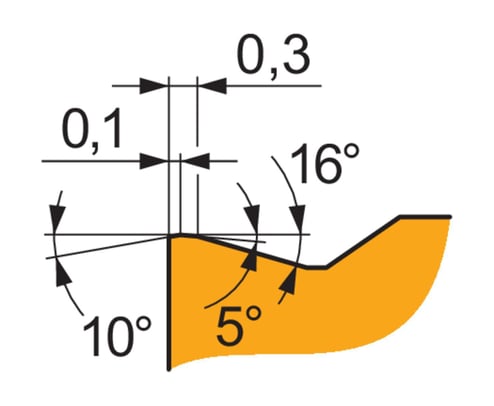

Chipbreaker M
Corner Radius 0.8 mm
Finish CVD Coated
For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
Hole Diameter 5.16 mm
Included Angle 60 deg
Inscribed Circle 12.7 mm
Insert Size 432
Insert Style TNMG
ISO Code TNMG 220408E-M T9325
Length 22 mm
Manufacturer's Grade T9325
Material Carbide
Material Grade K, M, P, S
Maximum Depth of Cut 6 mm
Rake Negative
Relief Angle 0 deg
Seat Size 22
Shape Triangular
Thickness 3/16 in

Country of Origin: Czech Republic

Standards and Approvals: PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Features

  • T9325 grade functionally gradient substrate
  • Relatively low content of cobalt binder phase
  • Highly versatile material with very good operational reliability
  • Medium and higher cutting speed
  • Special surface finish for coating
  • Continuous and interrupted cut
  • Rounded edge
