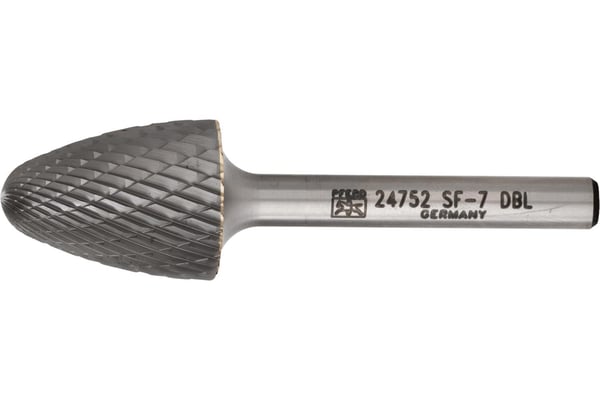

PFERD 21724752 Universal Line Premium Grade Carbide Burr, Radius End, Tree Head, 3/4 in Dia Head, 1 in L of Cut, 2-3/4 in OAL, Double Cut


Description

PFERD Carbide Burr, Premium Grade, Series: Universal Line, Radius, 3/4 in Head Dia, 1 in Length of Cut, 2-3/4 in Overall Length, Tree Head Shape, Double Cut Type, 1/4 in Shank Dia, 1-3/4 in Shank Length, Tungsten Carbide Head, Bright Head Coating, 14000 rpm Maximum, Applicable Materials: Cast Iron, Cast Steel, Non-Ferrous Metals, Steel and Stainless Steel, SF-7 Industry Specification

PFERD produces an extensive range of top quality carbide burs and bi-metal hole saws. PFERD burs deliver very high stock removal performance over their entire service life, providing outstanding results in minimal time.

Specifications

Applicable Materials Cast Iron, Cast Steel, Non-Ferrous Metals, Steel and Stainless Steel
Cut Type Double
End Type Radius
Head Coating Bright
Head Diameter 3/4 in
Head Material Tungsten Carbide
Head Shape Tree
Industry Specification SF-7
Length of Cut 1 in
Maximum Speed 14000 rpm
Overall Length 2-3/4 in
Series Universal Line
Shank Diameter 1/4 in
Shank Length 1-3/4 in
Type Premium Grade

Country of Origin: Germany

Standards and Approvals: PROP65: California to cause cancer. www.P65Warnings.ca.gov/product

Application:
Deburring, Leveling, Milling Out, Cutting Out Holes, Surface Work and Work on Weld Seams

Features

  • Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating
  • Long service life
  • Reduced wear on the power tool due to impact-free work without chatter marks, due to the high concentricity
  • High surface quality
