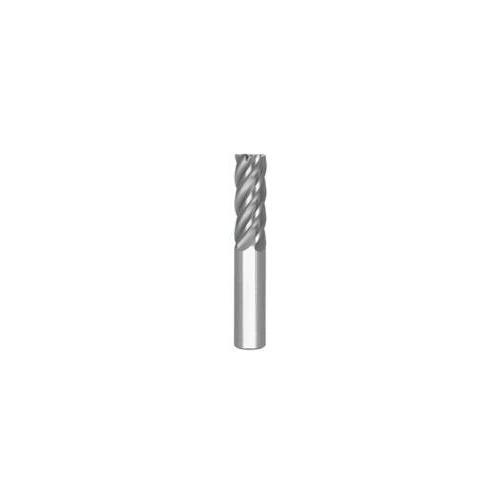

Seco Niagara Cutter Stabilizer™ 17004323 Stabilizer™ STR540 Center Cutting High Performance Short Length Single End End Mill, 3/8 in Dia Cutter, 0.045 in Corner Radius, 7/8 in Length of Cut, 5 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, AlCrN Coated


Description

Seco Niagara Cutter Stabilizer™ End Mill, Center Cutting High Performance Short Length Single End, Series: Stabilizer™ STR540, 3/8 in Diameter Cutter, 0.045 in Corner Radius, 2-1/2 in Overall Length, 7/8 in Length of Cut, 5 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 40 deg Helix Angle, Cylindrical Shank, ANSI Code: STR540-0.375-D2-R045.0-Z5, ISO Code: STR540.375D2R045.0Z5, Solid Carbide, AlCrN Coated

Specifications

ANSI Code STR540-0.375-D2-R045.0-Z5
Corner Radius 0.045 in
Cutter Diameter 3/8 in
Cutting Direction Right Hand
Finish AlCrN Coated
Flute Type Spiral
Helix Angle 40 deg
ISO Code STR540.375D2R045.0Z5
Length of Cut 7/8 in
Material Solid Carbide
Number of Flutes 5
Overall Length 2-1/2 in
Series Stabilizer™ STR540
Shank Diameter 3/8 in
Shank Type Cylindrical
Type Center Cutting High Performance Short Length Single End

Country of Origin: United States

Application:
Profiling, High Speed and Trochoidal Milling

Features

  • Asymmetrical flute geometry
  • Maximum RDOC 50%
  • Full eccentric relief
