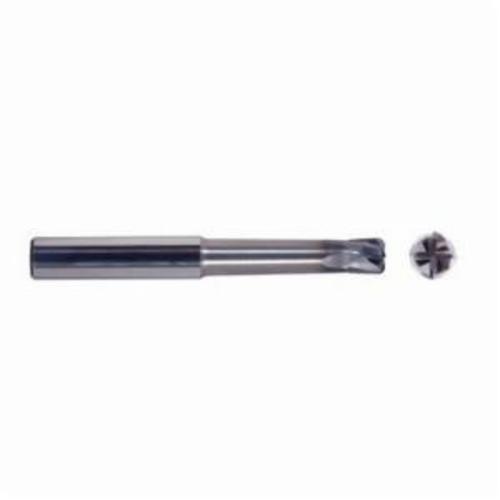

Seco Niagara Cutter 02942335 MZN510R Center Cutting High Feed Short Length Single End End Mill, 1/2 in Dia Cutter, 0.12 in Corner Radius, 0.12 in Length of Cut, 5 Flutes, 1/2 in Dia Shank, 4 in OAL, AlTiN Coated

Seco Niagara Cutter End Mill, Center Cutting High Feed Short Length Single End, Series: MZN510R, 1/2 in Diameter Cutter, 0.12 in Corner Radius, 4 in Overall Length, 0.12 in Length of Cut, 5 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 10 deg Helix Angle, Cylindrical Shank, ANSI Code: MZN510R-0.500-E1-R120.0-Z5, ISO Code: MZN510R.500E2R120.0Z5 Z5, Solid Carbide, AlTiN Coated

The MZN510R are designed to maximize productivity in hardened steels and super alloys. These end mills feature optimized substrate, geometry and coating to offer superior performance and process reliability. These high feed end mills are available in 1/8 to 5/8 in diameters, in four or five flute options, depending on the diameter. This range also features a short and long reach option to fit various work piece requirements. The MZN410R and MZN510R are effective in hardened steels, cast irons and nickel based super alloys. A typical application for this end mill is when machining hardened tool steels used in mold and die components. High feed milling (HFM) can reduce machining times and cut costs allowing one tool to be used in a wide range of operations and strategies. Reduce component costs by maximizing material removal rates and reduce processing time by allowing close to profile pocketing of 90 deg walls. HFM can also minimize semi-finishing operations, thus further increasing efficiency. The open end tooth design provides superior chip evacuation. This provides process reliability because chips are effectively removed from the cutting zone and not being "re-cut" which leads to edge chipping.
