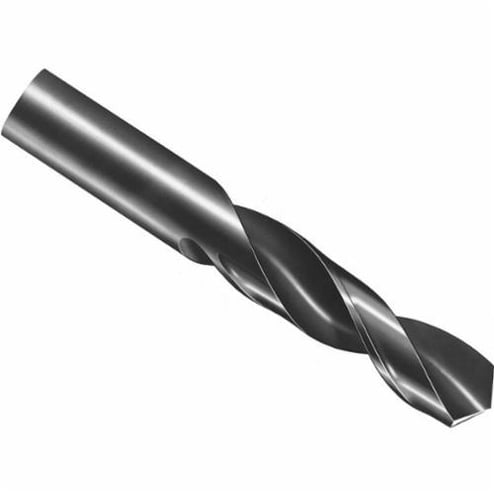

Michigan Drill® 600A 5/16 Screw Machine Drill, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, HSS, Black Oxide


Description

Michigan Drill® Screw Machine Drill, Series: 600A, Imperial, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 2-13/16 in Overall Length, 1-5/8 in Cutting Depth, 1-5/8 in Flute Length, 5/16 in Shank, 135 deg Point, Split Point, HSS Cutting Edge, HSS, Black Oxide

Specifications

Cutting Depth 1-5/8 in
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.3125 in
Drill Size - Fraction 5/16 in
Finish Black Oxide
Flute Length 1-5/8 in
Material HSS
Overall Length 2-13/16 in
Point Angle 135 deg
Point Type Split
Series 600A
Shank Size 5/16 in

Standards and Approvals: NAS 907 Type C

Application:
For use in automotive and construction industries

Features

  • Used in screw machine set-ups where spindle clearance is limited
  • Their short flute and overall length provide maximum rigidity
