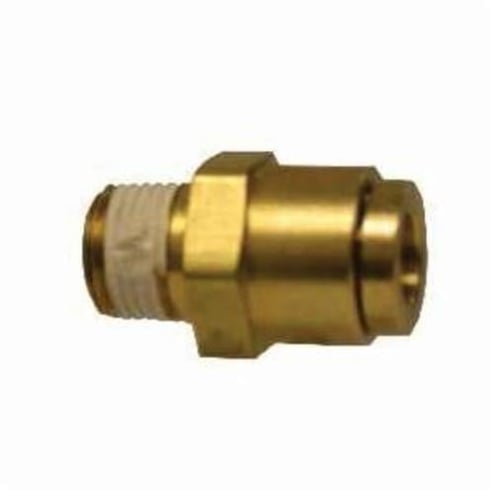

MMM 680808 Tube To Pipe Connector, 1/2 in Nominal, Push-In x MNPTF End Style, Brass


Description

MMM Tube To Pipe Connector, Adapter Fitting/Connector, 1/2 in Nominal, Push-In x MNPTF End Style, 1.72 in Length, 150 psi Pressure, -40 to 200 deg F, Brass

Specifications

End Style Push-In x MNPTF
Fitting/Connector Type Adapter
Length 1.72 in
Material Brass
Nominal Size 1/2 in
Pressure Rating 150 psi
Temperature Rating -40 to 200 deg F

Country of Origin: Taiwan

Features

  • Fast assembly - No tools required, simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings, no loose parts to handle
  • Fast disconnect - Hold the collet collar with two fingers and pull out tube
  • Reusable - Can be connected and disconnected several times
  • Reliable sealing - using recommended tubing, full sealing is guaranteed
  • Versatility - Buna-N O'ring standard, viton and others avail, secure tube retention, pulling on tubing only serves to tighten the connection
  • Pre-Applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
  • Full flow design, provides more flow area than conventional fittings with internal tube supports even in the swivels
  • DOT fittings are constructed with an all brass captive eyelet which allows for maximum flow
  • The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing
  • Hex Size: 0.87 in
