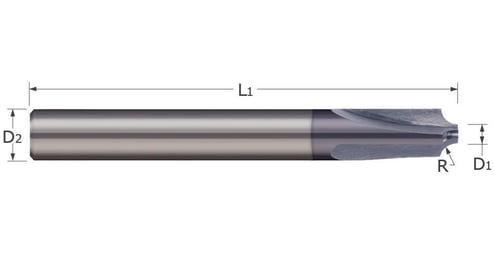

MICRO 100® CRE-500-187 Corner Rounding End Mill, 0.5 in Dia Cutter, 0.1975 in Length of Cut, (3) Flutes, 0.5 in Dia Shank, 3 in OAL, Uncoated
MICRO 100® CRE-500-187 Corner Rounding End Mill, 0.5 in Dia Cutter, 0.1975 in Length of Cut, (3) Flutes, 0.5 in Dia Shank, 3 in OAL, Uncoated
SKU: MIC100 CRE-500-187
Manufacturer Part Number: CRE-500-187
Brand: MICRO 100®
Description
Specifications
| Cutter Diameter | 0.5 in |
| Cutting Direction | Right Hand |
| Finish | Uncoated |
| Flute Type | Helical |
| Length of Cut | 0.1975 in |
| Material | Solid Carbide |
| Number of Flutes | 3 |
| Overall Length | 3 in |
| Shank Diameter | 0.5 in |
| Shank Type | Cylindrical |
| Type | Double Ended |
Country of Origin: United States
Features
- Designed to mill corner radii into a part
- 1 deg max flares tangent at pilot and shoulder to avoid steps and burrs
- Cuts on radius only
- Double-ended
- AlTiN coating option for added lubricity and increased wear resistance in difficult-to-machine materials
- Solid carbide
