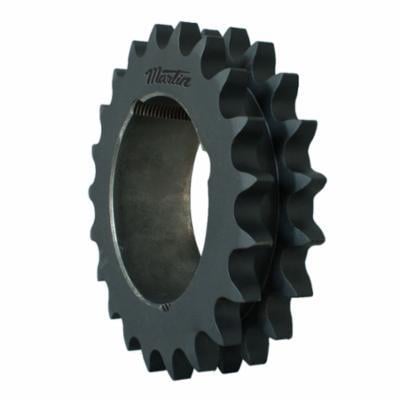

Martin D80BTB20H Double Strand TB Bushed Solid Type B Single Roller Chain Sprocket, 6.914 in OD, 80-2 Chain, 20 Teeth, 1 in Pitch, Steel


Description

Martin Single Roller Chain Sprocket, Double Strand TB Bushed Solid Type B, 6.914 in Outside Dia, 80-2 Chain, 20 Teeth, 1 in Pitch, 6.393 in, 5-1/4 in Hub Dia, 2 in Length Through Bore, 3020 Taper Lock Bushing, Steel

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.

Specifications

Bushing Type 3020 Taper Lock
Chain Size 80-2
Hub Diameter 5-1/4 in
Length Through Bore 2 in
Material Steel
Number of Teeth 20
Outside Diameter 6.914 in
Pitch 1 in
Pitch Diameter 6.393 in
Type Double Strand TB Bushed Solid Type B

Country of Origin: United States

Features

  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
