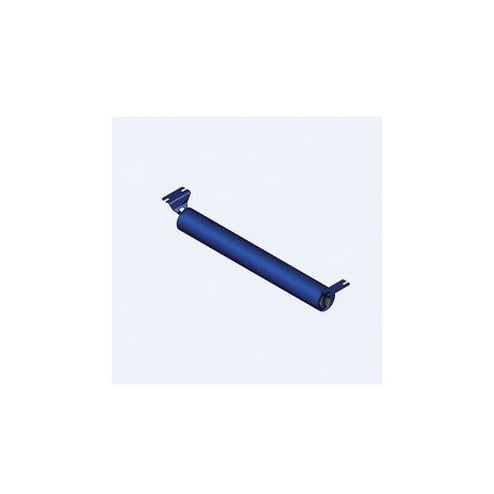

Martin C5-R-36-09-4 Self-Aligner Return Idler, Class C CEMA Rating, 5 in Dia Roll, 36 in W Belt, Steel


Description

Martin Return Idler, Self-Aligner, Class C CEMA, 5 in Roll Diameter, 36 in Belt Width, Ball Bearing, 39.38 in Roller Length, 47 in Overall Width, 45 in Distance Between Mounting Holes, Steel

Steel return idlers are used to support the belt on the return side when the conveyed material is not sticky, corrosive or excessively abrasive. These rollers are available with a variety of coatings suitable for the specific application.

Specifications

Bearing Type Ball
Belt Width 36 in
CEMA Rating Class C
Distance Between Mounting Holes 45 in
Material Steel
Overall Width 47 in
Roll Diameter 5 in
Roller Length 39.38 in
Type Self-Aligner

Warranty: 1 year

Country of Origin: United States

Standards and Approvals: NIBA Certified

Features

  • Manufactured using sealed for life ball bearings for long maintenance free operation
  • Ultimate Martin triple labyrinth seal guard bearing protection
  • Conform to all CEMA C load and dimensional requirements
  • 9 ga tubing exceeds industry wall thickness standards
  • External shield deters impurities from entering the bearing housing
  • Flinger design removes contaminates away from the bearing housing by centrifugal force
  • The contact lip seal adds additional level of protection
  • Martin CEMA C idlers offer extremely low rolling resistance that allows for lower operating cost
  • Roll gap meets NIBA recommendation
  • Patent pending idler end welding allows for protection against belt wear
  • 0.88 in solid steel shaft machined down to 20 mm at each end
  • Martin idlers have exceptionally low TIR runout
