Martin 12CH2205-O Conveyor Hanger, 220 Style, 12 in Dia Conveyor, 2-7/16 in Coupling


Description

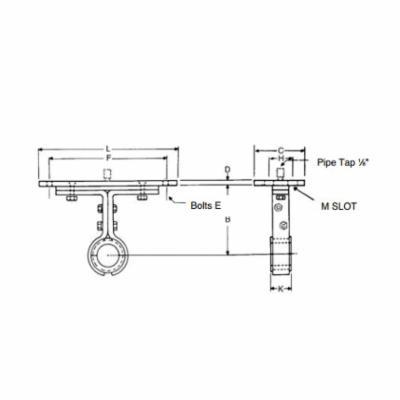

Martin Conveyor Hanger, 220 Style, 12 in Conveyor Diameter, 2-7/16 in Coupling, 2-1/2 in Mounting Hole Center, 7-3/4 in Top Frame Length, 5 in Top Frame Width, 3/8 in Top Frame Thickness, 9/16 x 1-5/16 in Slot

No. 220 hangers are designed for mounting on top of the trough flanges and may be used where dust-tight or weather-proof operation is not required. This type hanger allows for minimum obstruction of material flow in high capacity conveyors. Available with friction type bearing.

Specifications

Conveyor Diameter 12 in
Coupling Size 2-7/16 in
Mounting Hole Center 2-1/2 in
Slot Size 9/16 x 1-5/16 in
Style 220
Top Frame Length 7-3/4 in
Top Frame Thickness 3/8 in
Top Frame Width 5 in

Country of Origin: Mexico

Standards and Approvals: CEMA Standard, PTDA Certified
