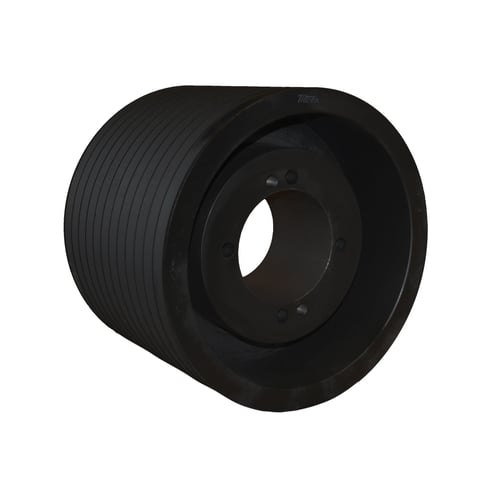

Martin Hi-Cap® 12 8V 2000 N Type A-2 Web Wedge Stock Sheave, 2-15/16 to 5 in QD® Bushed Bore, 20 in OD, 12 Grooves, 19.8 in Dia Pitch, 13-7/8 in W Face


Description

Martin Hi-Cap® Wedge Stock Sheave, Type A-2 Web, QD® Bushed Bore, 2-15/16 to 5 in Bore, 20 in OD, 19.8 in Pitch Diameter, 12 Grooves, 13-7/8 in Face Width, N Bushing, 14 in Overall Length, For Use With: 8V Cross Section V-Belts, Gray Cast Iron

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V and 8V belts.

Specifications

Bore Diameter 2-15/16 to 5 in
Bore Type QD® Bushed
Bushing Type N
Face Width 13-7/8 in
Material Gray Cast Iron
Number of Grooves 12
Outside Diameter 20 in
Overall Length 14 in
Pitch Diameter 19.8 in
Suitable For Use With 8V Cross Section V-Belts
Type Type A-2 Web

Country of Origin: United States

Features

  • Interchangeable with other manufacturer's QD bushings
  • Tolerances adhere to industry guidelines
  • Precise machining and processes ensure consistent finish and high quality
  • Statically balanced with maximum rim speed marked on print
