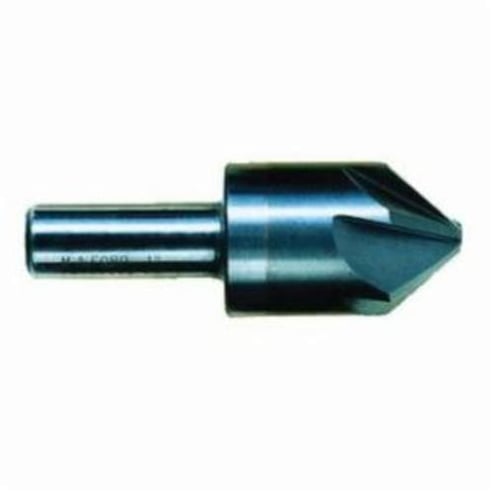

M.A. Ford® 78062503 78 Series Chatterless Single End Countersink, 5/8 in Dia Body, 3/8 in Dia Shank, 6 Flutes, 90 deg Included, 0.18 in Dia Min Cutting, Solid Carbide


Description

M.A. Ford® Countersink, Chatterless Single End, Series: 78 Series, 5/8 in Diameter Body, 2-3/8 in Overall Length, Straight Shank, 3/8 in Shank Diameter, 0.18 in Diameter Nose, 6 Flutes, Right Hand Cutting Direction, 90 deg Included Angle, 45 deg Centerline Angle, 0.18 in Diameter Minimum Cutting, Solid Carbide, Uncoated

All M.A. Ford® HSS countersinks are heat treated in an electronically controlled vacuum furnace. This assures precise hardening and eliminates the possibility of decarburization. All heat treating is done in our own facilities for maximum control and assurance of desired hardness and toughness. Most M.A. Ford® HSS countersinks receive an additional heat treat process known as the Steam homogeneous process. This process is like a final tempering, relieving internal grinding stresses. The result is a much tougher cutting edge that stays sharper, longer. Additionally, the Steam homogeneous process provides a tough, hard, porous oxide film on the tool that is sufficient enough to retain cutting oil, further reducing frictional heat and extending tool life.

Specifications

Body Diameter 5/8 in
Centerline Angle 45 deg
Cutting Direction Right Hand
Finish Uncoated
Included Angle 90 deg
Material Solid Carbide
Minimum Cutting Diameter 0.18 in
Nose Diameter 0.18 in
Number of Flutes 6
Overall Length 2-3/8 in
Series 78 Series
Shank Diameter 3/8 in
Shank Type Straight
Type Chatterless Single End

Country of Origin: United States

Standards and Approvals: ISO 9001:2008

Application:
Chamfering, Deburring and Countersinking

Features

  • Solid carbide construction (steel shanks on tools 3/8 in Dia and larger) makes this countersink ideal for hardened steel, high temperature alloys and other tough jobs
  • Rigid set-ups and good machine tool maintenance are a must
  • Not recommended for handheld applications
