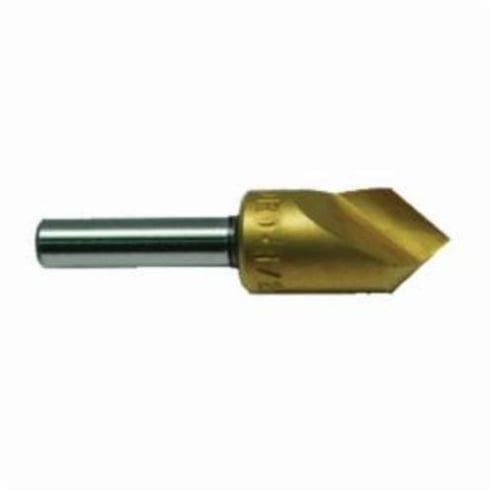

M.A. Ford® Uniflute® 61T050002 Chatterless General Purpose Countersink, 1/2 in Dia Body, 1/4 in Dia Shank, 1 Flutes, 82 deg Included Angle, 0.06 in Min Cutting Diameter, HSS


Description

M.A. Ford® Uniflute® Countersink, Chatterless General Purpose, Series: 61T, 1/2 in Body Dia, 2 in Overall Length, Straight Shank, 1/4 in Shank Dia, 0.06 in Nose Dia, 1 Flutes, Right Hand Cutting, 82 deg Included Angle, 0.06 in Minimum Cutting Dia, HSS, TiN Coated

All M.A. Ford® HSS countersinks are heat treated in an electronically controlled vacuum furnace. This assures precise hardening and eliminates the possibility of decarburization. All heat treating is done in our own facilities for maximum control and assurance of desired hardness and toughness. Most M.A. Ford® HSS countersinks receive an additional heat treat process known as the Steam homogeneous process. This process is like a final tempering, relieving internal grinding stresses. The result is a much tougher cutting edge that stays sharper, longer. Additionally, the Steam homogeneous process provides a tough, hard, porous oxide film on the tool that is sufficient enough to retain cutting oil, further reducing frictional heat and extending tool life.

Specifications

Body Diameter 1/2 in
Cutting Direction Right Hand
Finish TiN Coated
Included Angle 82 deg
Material HSS
Minimum Cutting Diameter 0.06 in
Nose Diameter 0.06 in
Number of Flutes 1
Overall Length 2 in
Series 61T
Shank Diameter 1/4 in
Shank Type Straight
Type Chatterless General Purpose

Country of Origin: United States

Standards and Approvals: ISO 9001:2008

Application:
Countersinking, Chamfering or Deburring Applications

Features

  • Self piloting and completely chatterless
  • No secondary burs formed
  • Each size may be used on a wide range of hole diameters
  • Use on machine tool or in handheld tool applications
  • Easily resharpened
  • TiN coating for higher surface hardness and increased lubricity
