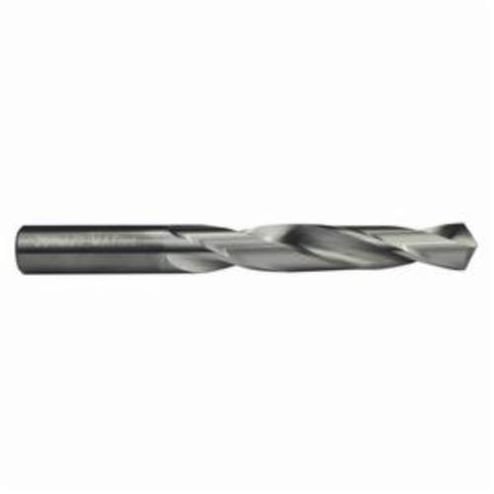

M.A. Ford® Twister® GP 20462500 General Purpose Jobber Length Drill Bit, 5/8 in Drill - Fraction, 0.625 in Drill - Decimal Inch, 118 deg Point, Solid Carbide, Bright


Description

M.A. Ford® Twister® GP Jobber Length Drill Bit, General Purpose, Series: 204, Imperial, 5/8 in Drill - Fraction, 0.625 in Drill - Decimal Inch, 5-1/4 in Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 3-1/2 in Flute Length, Straight Shank, 118 deg Point, 4-Facet Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, No Through Coolant, Solid Carbide, Bright, Applicable Materials: Steel, Stainless Steel, Cast Iron and Non-Ferrous Materials

M.A. Ford® drills are designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels. Twister® GP drills are an excellent choice for all general purpose hole-making and provide these high performance benefits.

Specifications

Applicable Materials Steel, Stainless Steel, Cast Iron and Non-Ferrous Materials
Cutting Depth 5XD
Cutting Direction Right Hand
Cutting Edge Material Solid Carbide
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.625 in
Drill Size - Fraction 5/8 in
Finish Bright
Flute Length 3-1/2 in
Flute Type Spiral
Material Solid Carbide
Number of Flutes 2
Overall Length 5-1/4 in
Point Angle 118 deg
Point Type 4-Facet
Series 204
Shank Type Straight
Through Coolant (Yes/No) No
Type General Purpose

Country of Origin: United States

Standards and Approvals: ISO 9001:2008

Application:
For all general purpose hole-making application

Features

  • Designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels
  • High feed rates with excellent chip evacuation
  • Accurate hole size in a wide range of materials
  • Pre-drilling and follow-up operations can often be eliminated because of the quality and performance of M.A. Ford® drills
  • Minimal wander produces maximum precision, productivity and drill life
  • Web-thinned drill designs are available for reduced power requirements, lower temperatures and extended drill life
  • 3-flute geometries are available to reduce chip load/tooth and increase tool life in highly alloyed steels
  • Designed to allow high feed rates with good chip flow
  • Four facet drill point minimizes drill wander and assures accurately sized holes
