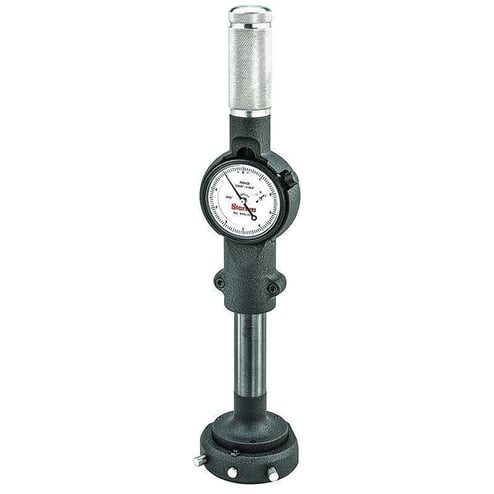

Starrett® 84AZ-111-5J 84 Series Dial Bore Gage, 3 to 5-3/16 in, Graduations: 0.0001 in, 6 in D Probe, Hardened Tool Steel


Description

Starrett® Dial Bore Gage, Series: 84 Series, 3 to 5-3/16 in, Graduations: 0.0001 in, 6 in Probe Depth, 2-21/32 in Dia Dial, White Dial, Hardened Tool Steel, 12-3/4 in L

Starrett® 84 dial bore gage allows for bore measurements beyond size range of our 82 series. It is a comparison gage and should be set with a master ring gage, gage blocks with parallel jaws, outside micrometer or vernier caliper. Ring gage is available by request, quoted by application. Good practice is to set the gage to zero, as near to the desired dimension as possible.

Specifications

Dial Color White
Dial Size 2-21/32 in Dia
Dimensions 12-3/4 in L
Graduations 0.0001 in
Material Hardened Tool Steel
Measuring Range 3 to 5-3/16 in
Probe Depth 6 in
Series 84 Series

Includes: Wooden Storage Case

Country of Origin: United States

Standards and Approvals: PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm

Features

  • Can be easily held to inspect bores and hole sizes without removing the workpiece
  • An adjustable range screw and two centralizing plungers provide accurate, three-point contact for tool alignment in larger bores
  • All contacts and centralized plungers are of hardened tool steel for wear and spring-loaded for sensitivity
  • The housing and knurled handle are aluminum for light weight and good balance
  • Dial indicators have jewel bearings for sensitivity
  • Furnished in finished wood case
  • Bore depths are also available up to 12 in (300 mm) in 1 in (25 mm) increments on special order
  • Also available with carbide contacts or electronic indicators with output capability on special order
