Starrett® 270 Taper Gauge, 0.01 to 0.15 in Measuring, Graduations 0.001 in, 6-1/4 in L, Tool Steel


Description

Starrett® Taper Gauge, Series: 270, 0.01 to 0.15 in Measuring, Graduations: 0.001 in, 6-1/4 in Length, 7/16 in Width, Tool Steel

The Starrett 270Taper Gage is ideal for measuring hole and slot sizes. It is easy to use, delivering quick, accurate measurements. It is a convenient size for carrying in pockets and tool belts. While this low-tech, trusted and reliable tool is available from many manufacturers, the Starrett 270 is designed with as much attention to ergonomics as it is to accuracy. It feels like a natural extension of your hand, delivering a comfortable and rewarding user experience.

Specifications

Graduations 0.001 in
Length 6-1/4 in
Material Tool Steel
Measuring Range 0.01 to 0.15 in
Series 270
Width 7/16 in

Country of Origin: China

Features

  • Very useful tool for bearing work and for gaging slots
  • Made of quality tool steel and accurately tapered throughout entire length for quick and convenient measuring
  • 11mm (7/16 in) wide by 160mm (6-1/4 in) long
  • Can be used as a precision shim

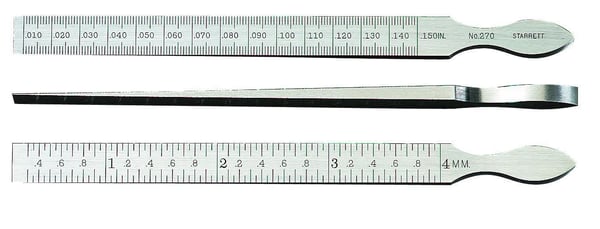

  • One side graduated from .010 in to .150 in in thousandths of an inch, the reverse side from 0.3mm to 4mm in one-twentieth of a mm (0.05mm)
